universal aluminum roof tile set for poles with a diameter of 60 mm, black

Black Universal Aluminium Roof Mast Kit for Ø 60 mm Masts – with Mast Foot, Clamp, Collar and Cap
The AS44360 is a roof mast installation kit designed for suitable Ø 60 mm antenna masts on pitched roofs.
The kit combines a black aluminium roof flashing with mast support components and weather-protection parts for the roof penetration.

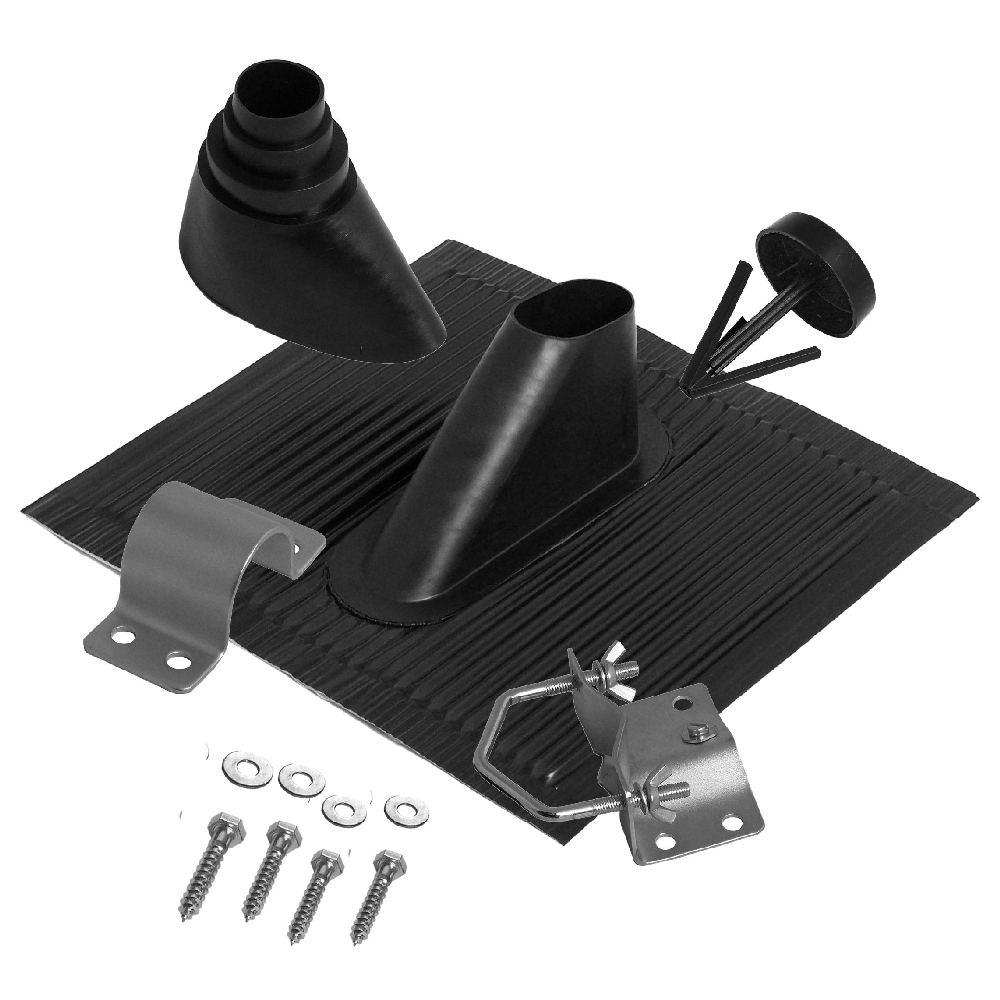

According to the available product data, the set includes an approximately 450 × 500 mm black aluminium roof flashing, a mast clamp for Ø 60 mm, a galvanised mast foot, galvanised steel mounting hardware, a black UV-resistant sealing collar and a UV-resistant plastic mast cap.
For Ø 60 mm antenna masts
The system is designed for mast tubes with:
– Ø 60 mm outside diameter
The antenna mast itself is not included.
Approx. 450 × 500 mm roof flashing
The roof flashing measures approximately:
– 450 × 500 mm
– 45 × 50 cm
According to the product information, the construction combines aluminium with UV-resistant plastic.
Adaptable aluminium flashing
The aluminium section can be formed to follow various common roof tile profiles.
This makes the system suitable for many pitched-roof installations.
It should not, however, be assumed to fit every roof tile geometry without checking the actual roof covering.
Black finish
The black version is particularly suitable for visual integration into:
– black roofs
– anthracite roof coverings
– other dark roof surfaces
Ø 60 mm mast clamp
The kit includes a mast clamp designed for:
– Ø 60 mm masts
Galvanised mast foot
A galvanised mast foot is included to provide a lower mechanical support point for the mast.
Galvanised steel mounting hardware
Mounting hardware made from galvanised steel is included according to the product configuration.
The roof substructure must be capable of carrying the antenna and wind loads.
Black UV-resistant sealing collar
The supplied collar forms the weather-protected transition around the mast where it passes through the roof flashing.
Weather-protected rather than universally waterproof
The complete installation can provide a weather-protected mast penetration when correctly installed.
Performance depends on:
– correct shaping of the flashing
– collar installation
– roof overlap
– roof pitch
– water drainage
– treatment of the roof underlay
The system should therefore not be described as universally waterproof regardless of installation.
UV-resistant mast cap
A UV-resistant plastic mast cap is also included.
It closes the open top of the mast and helps reduce direct entry of rain, dirt and debris.
It is not a completely waterproof pipe seal.
Mechanical support and roof penetration
Unlike a simple roof flashing, this kit also includes mast support components.
Nevertheless, the complete antenna load must be transferred into a suitable structural part of the roof.
The roof flashing and sealing collar must not carry the antenna wind load.
Satellite and terrestrial antenna applications
Depending on the overall mechanical design, the system can be used for suitable:
– satellite antennas
– DVB-T/T2 antennas
– DAB/DAB+ antennas
– FM antennas
– radio antennas
No confirmed maximum satellite dish diameter is specified in the available product data.
Technical specifications
Article reference: AS44360
Article number: 44360
EAN: 4050822443604
Product type: Roof mast installation kit / aluminium roof flashing kit
Colour: Black
Roof flashing size: Approx. 450 × 500 mm
Materials: Aluminium and UV-resistant plastic according to product data
Mast diameter: Ø 60 mm
Mast clamp: For Ø 60 mm
Mast foot: Galvanised
Mounting hardware: Galvanised steel
Sealing collar: Black, UV-resistant
Mast cap: UV-resistant plastic
Maximum antenna size: Not specified
Package contents
1 × black aluminium roof flashing, approx. 450 × 500 mm
1 × mast clamp for Ø 60 mm
1 × galvanised mast foot
1 × galvanised steel mounting hardware set according to product configuration
1 × black UV-resistant sealing collar
1 × UV-resistant plastic mast cap
Antenna mast, satellite dish, LNB, coaxial cable and additional antenna accessories are not included unless separately specified.
