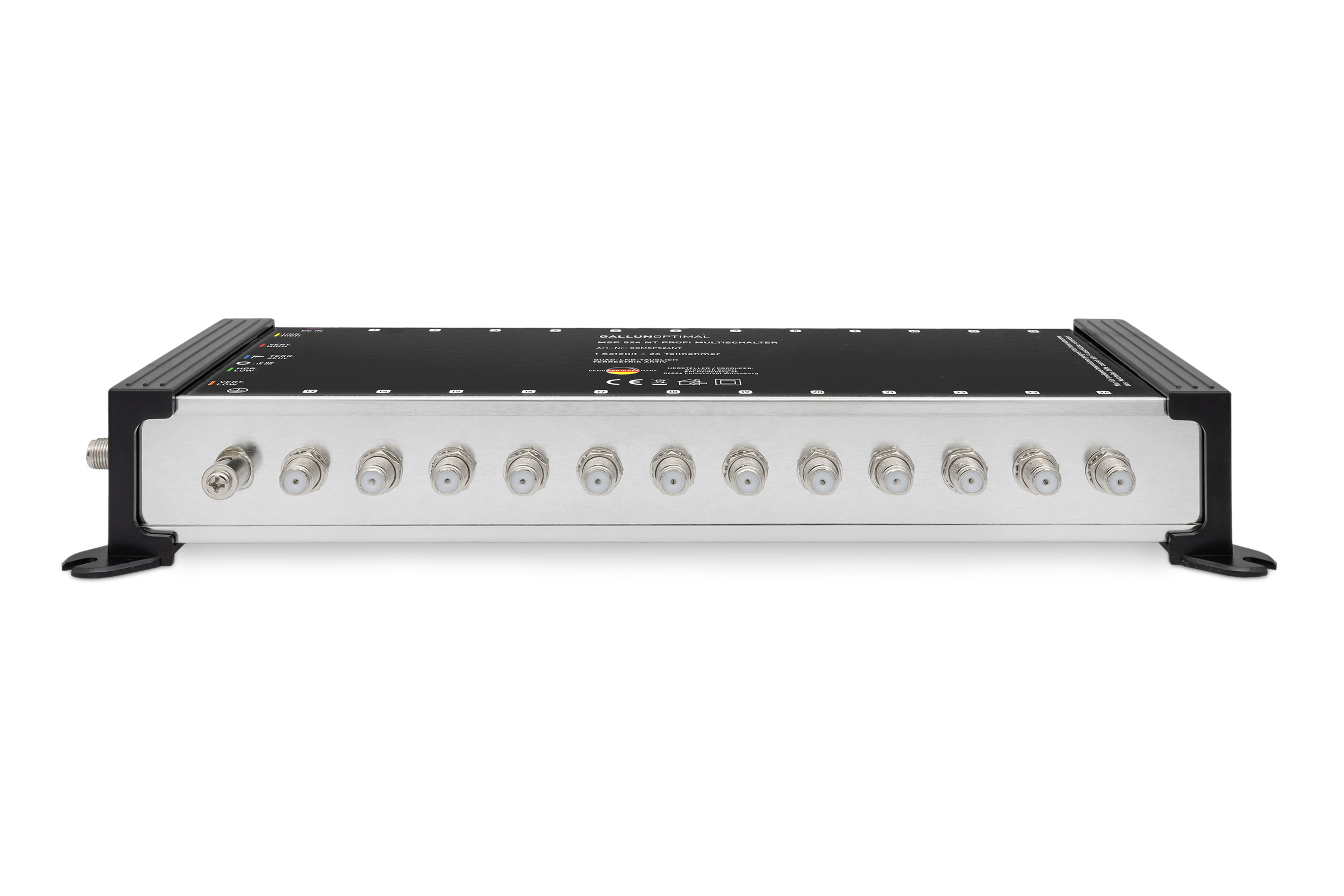

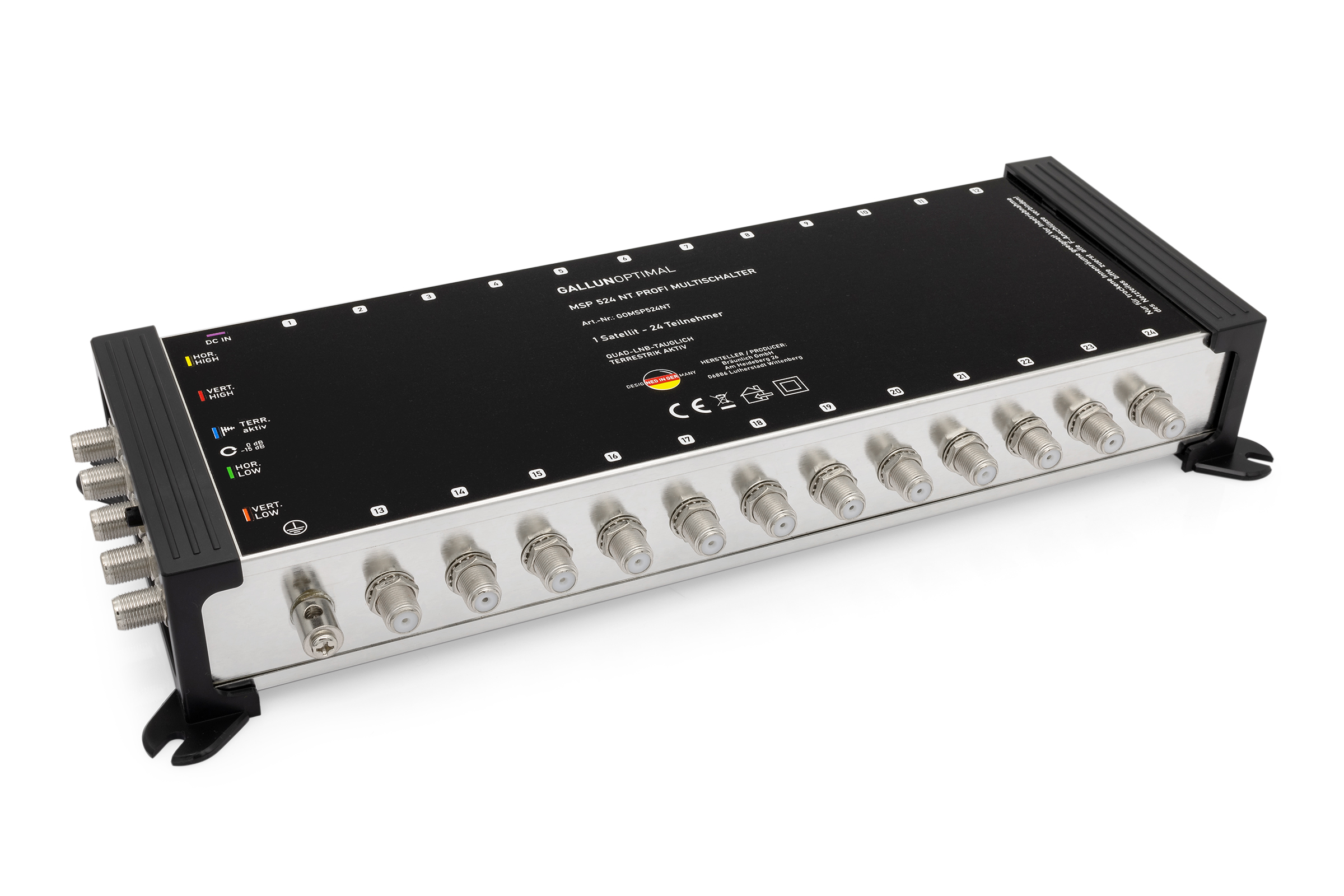

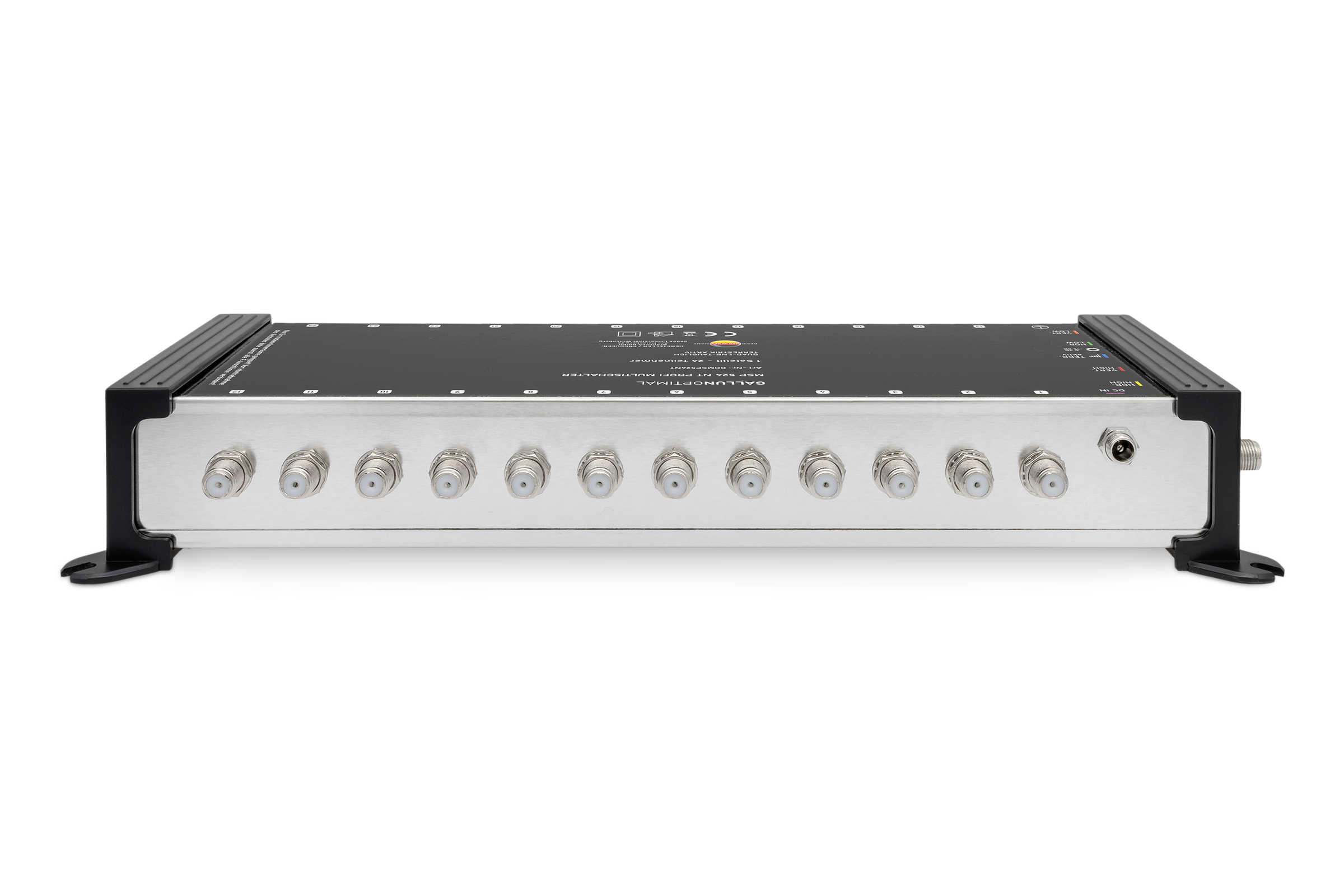

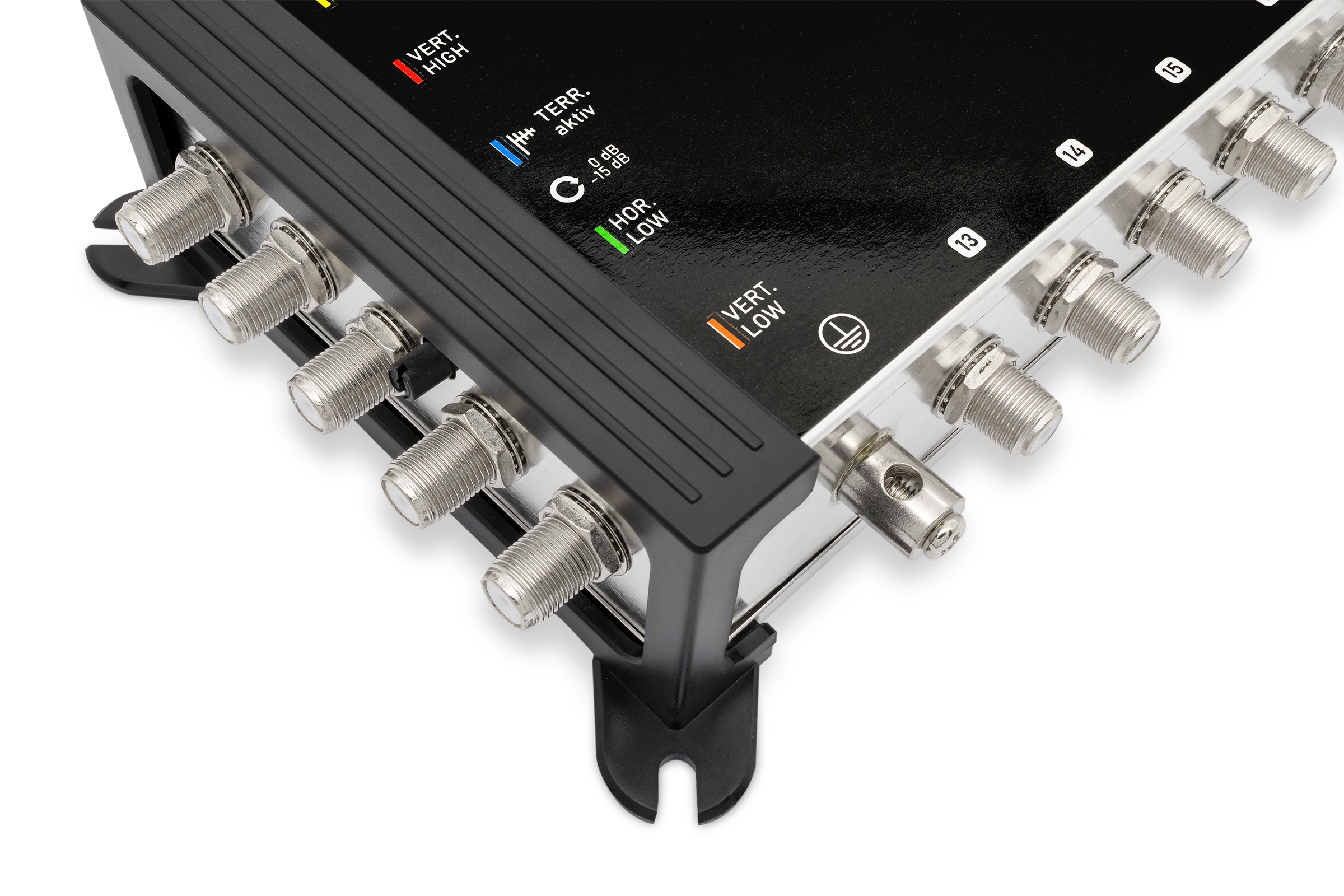

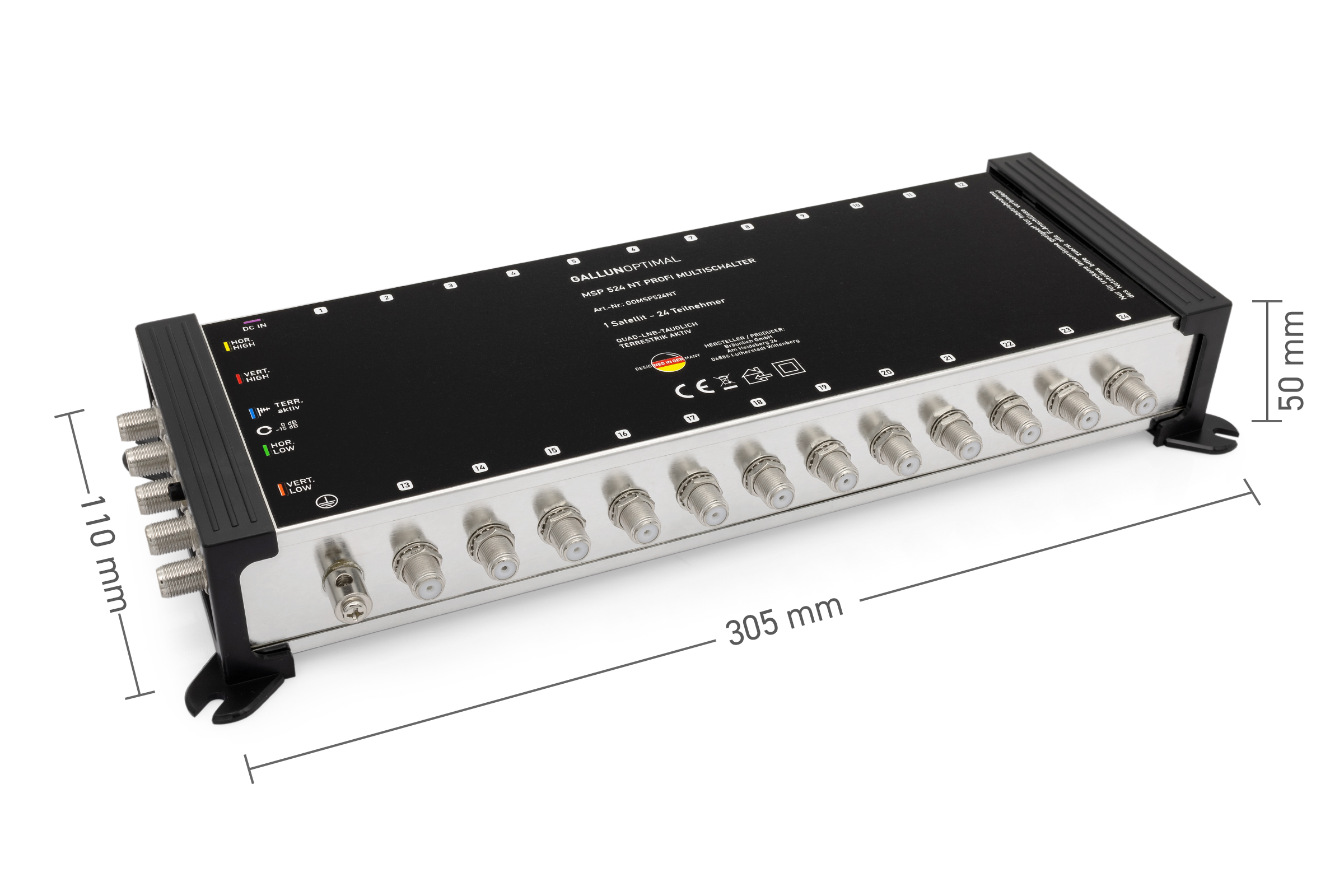

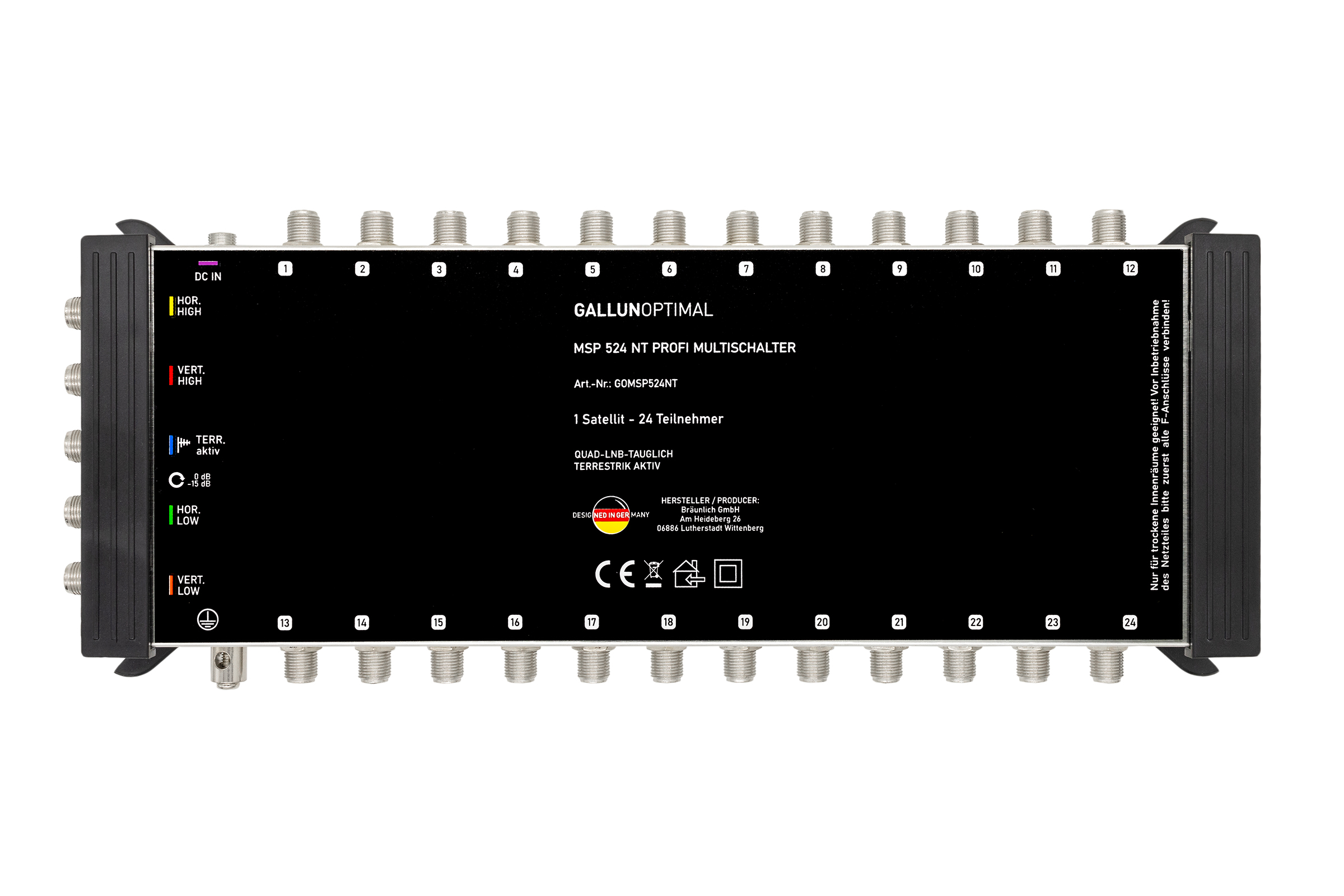

GALLUNOPTIMAL MSP 524 Professional Edition Satellite Multiswitch

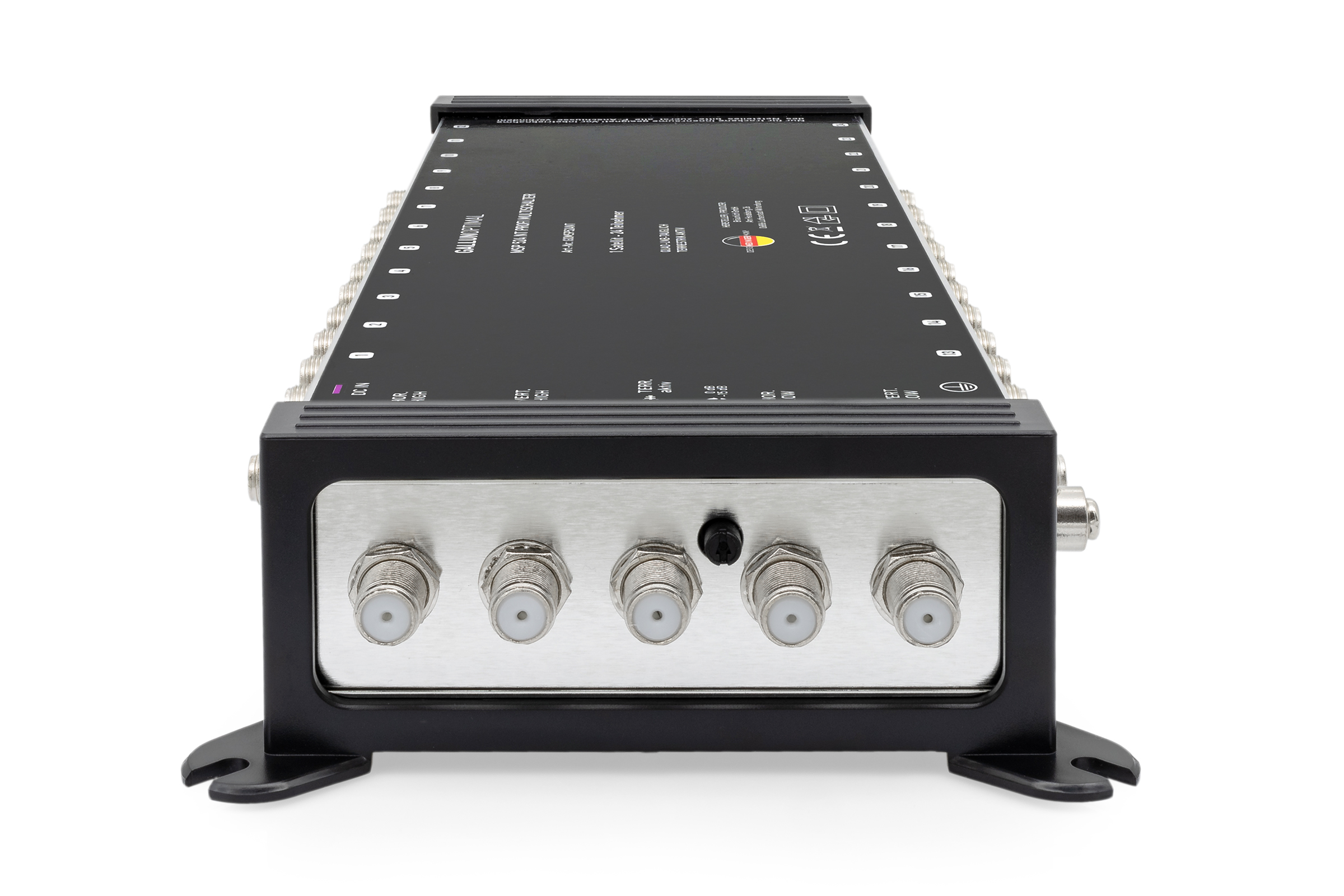

– 5 inputs (4x satellite & 1x terrestrial)
– 24 subscriber outputs
– QUAD and QUATTRO LNC compatible
– Terrestrial active and adjustable (0 dB to -15dB)
– Power supply
– Mounting feet
– Max. output level Sat. 95 dB dBµV
– Max. output level terr. 85 dBµV
– Max. operating temperature -20°C to +70°C
Multiswitch for receiving 1 satellite and for up to 24 participants. One SAT receiver or one TV with integrated SAT receiver can be connected to each of the 24 outputs. This model has a built-in 22kHz generator and can therefore be controlled with either Quattro or Quattro-Switch (Quad) LNBs.
When using a QUAD LNB, the connection order at the switch is irrelevant.
