Power: 68 watts

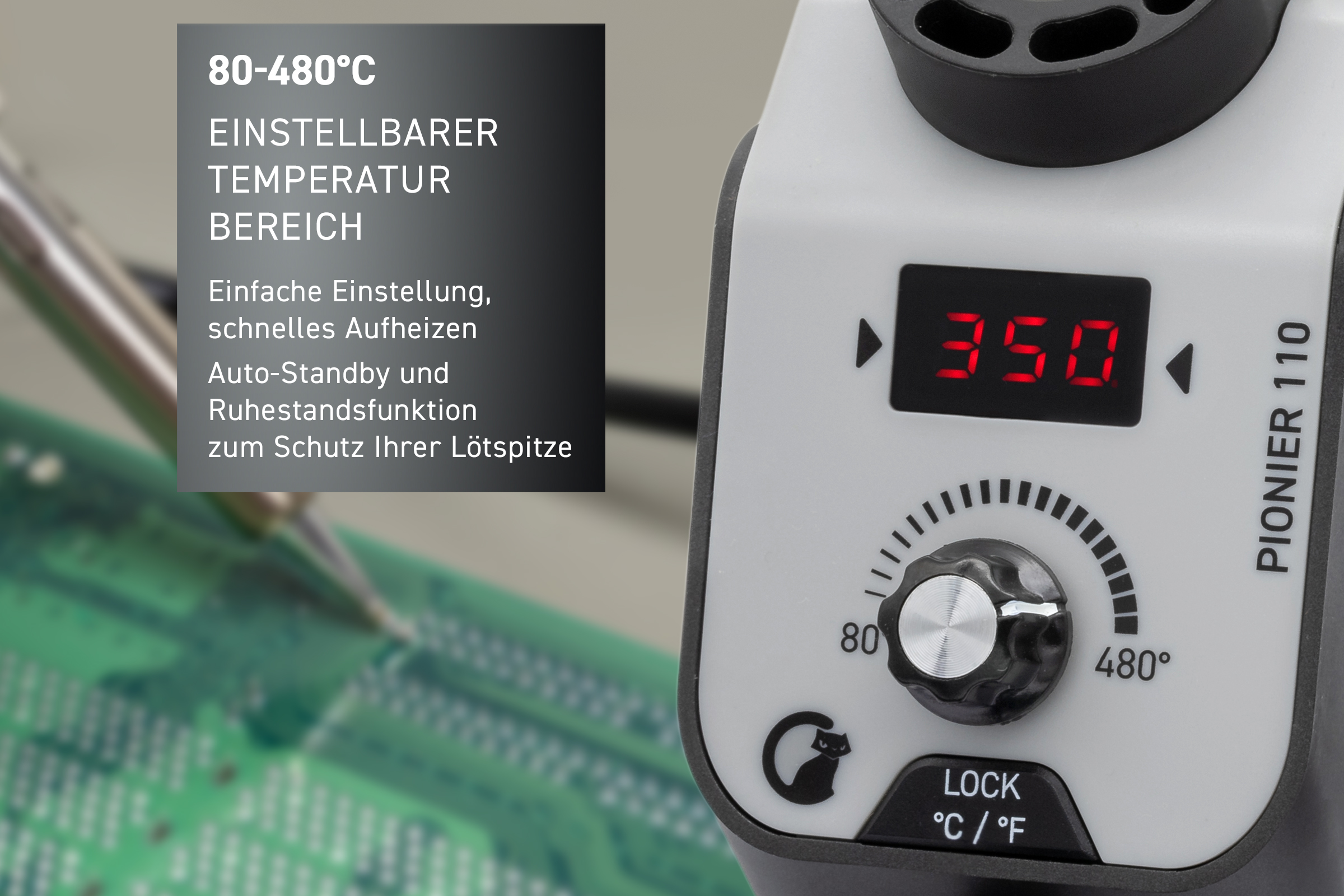

Temperature setting range: 80–480°C
Temperature stability: +/- 2°C
Temperature unit: °C / °F
Display: Nixie tube
– Soldering station with integrated soldering iron stand
– Temperature control calibrated with a PID system
– Simple, intuitive operation
– Ergonomic, lightweight soldering iron

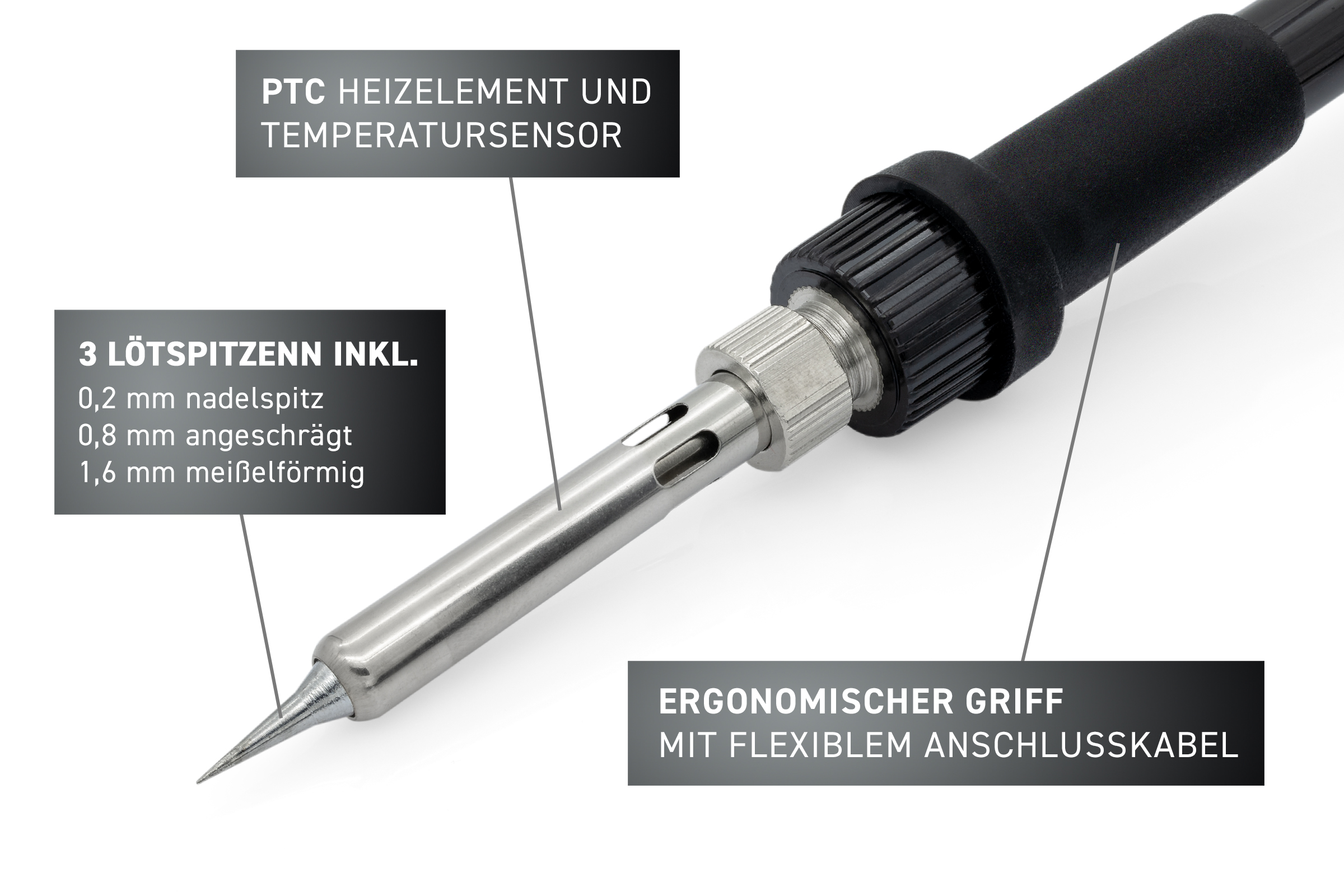

– The PTC heating element guarantees fast heating and precise temperature control
– Auto standby and sleep mode function
– Temperature lock function
– Power cord with protective conductor

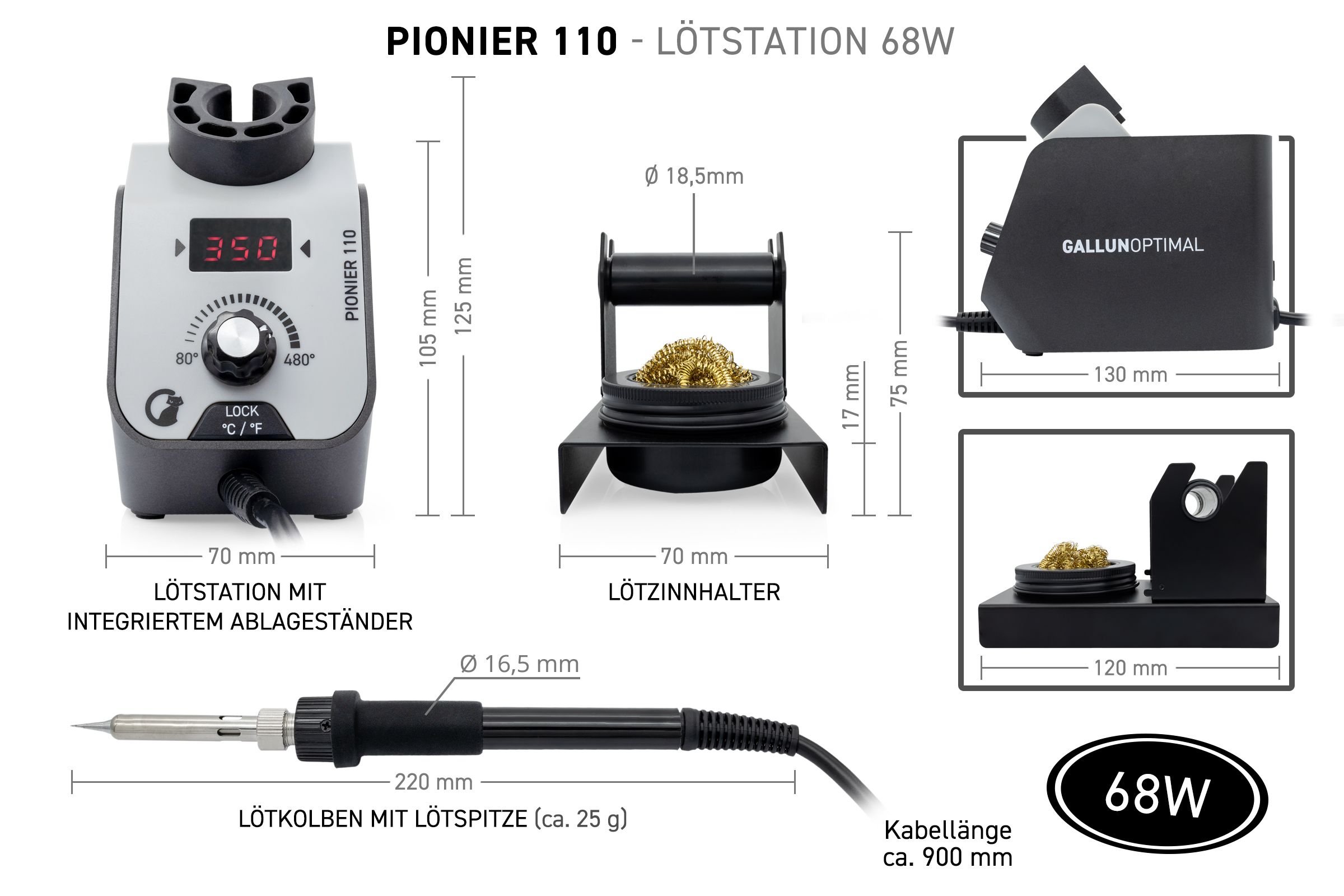

Scope of delivery:

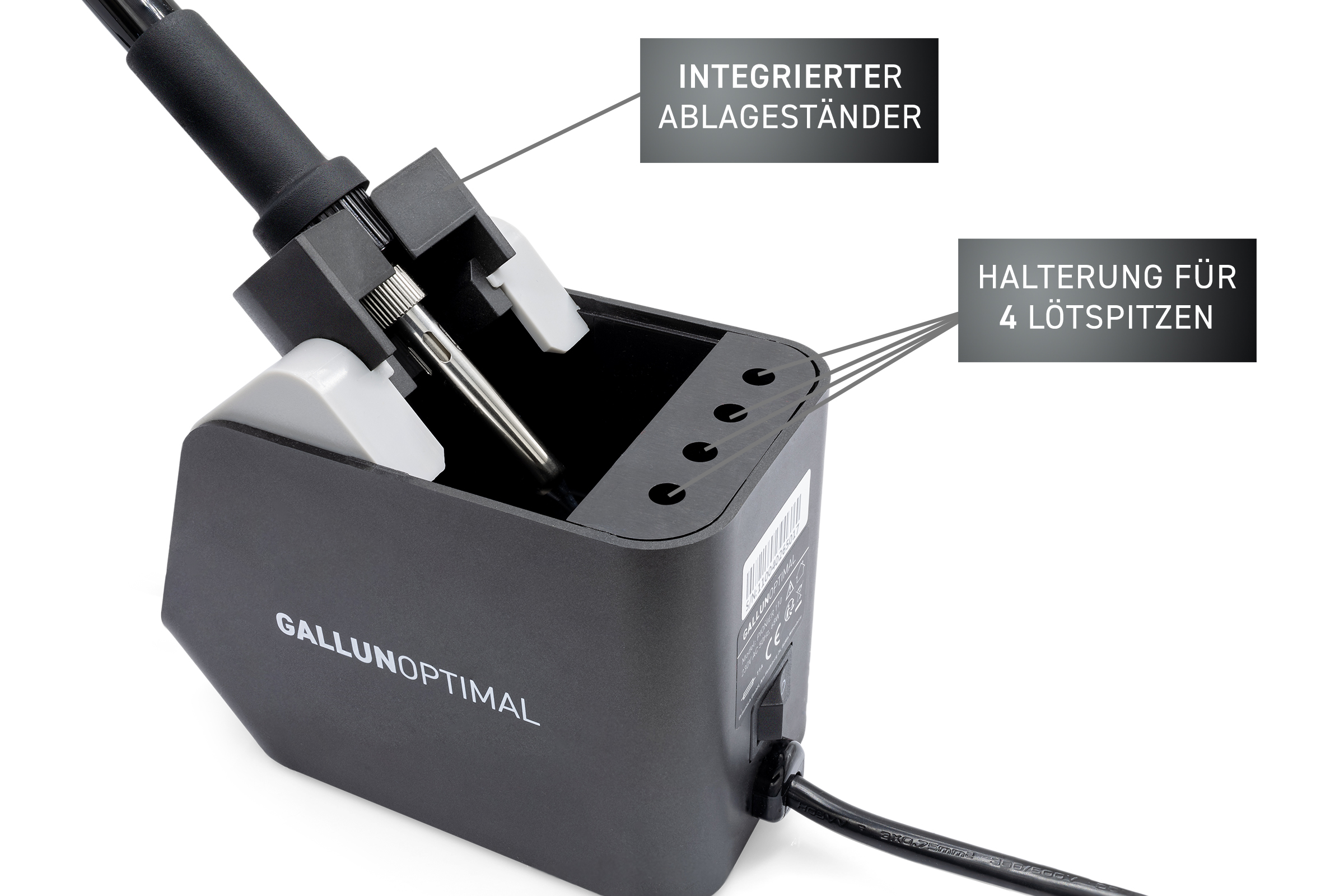

– Pionier 110 base station with integrated storage stand
– 68-watt soldering iron with flexible silicone cable

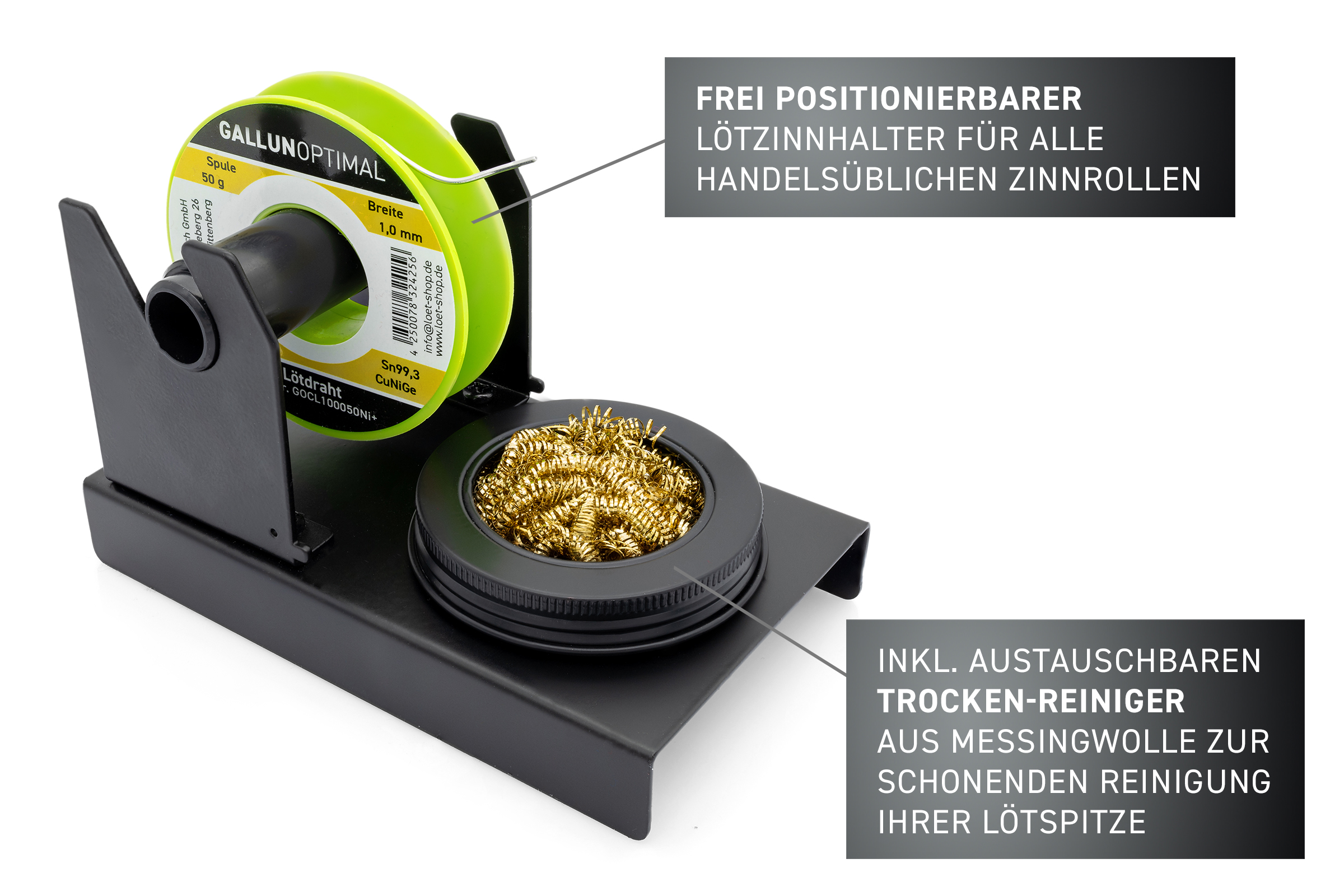

– Solder holder with brass wool cleaner
– GO960-I GALLUNOPTIMAL permanent soldering tip, needle point, Ø 0.2 mm
– GO960-0.8C GALLUNOPTIMAL permanent soldering tip, straight, 45° beveled, Ø 0.8 mm
– GO960-1.6D GALLUNOPTIMAL permanent soldering tip, straight, chisel-shaped, 1.6 mm wide
If the soldering iron is in the storage stand and is not used for 10 minutes, the station automatically switches to standby mode. The temperature is lowered to 200°C and the display shows StB.
As soon as the soldering iron is removed from the stand, it heats up again to the previously set temperature.
If the soldering iron is in the storage stand and is not used for 20 minutes, the station is put into sleep mode. SLP is shown on the display. The heating is completely switched off. To end sleep mode, a button must be pressed or the temperature control must be turned.
Pressing the temperature lock button (Lock) under the temperature control for 3 seconds activates the temperature lock function. Loc is shown on the display and the temperature control no longer functions. Pressing the temperature lock button again for 3 seconds releases the temperature control.
