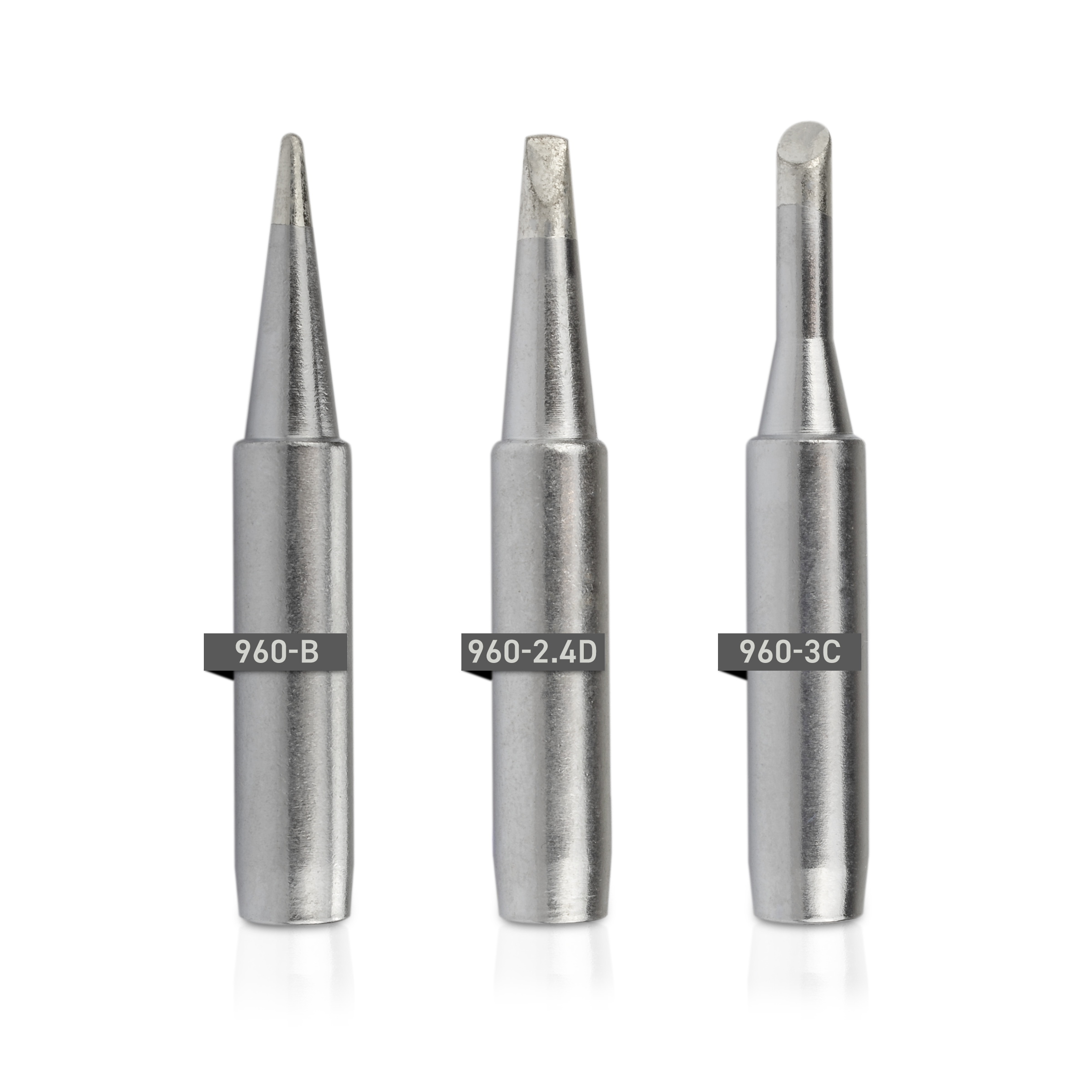

GALLUNOPTIMAL Replacement Tip Set for GALLUNOPTIMAL SPRINT65, consisting of:

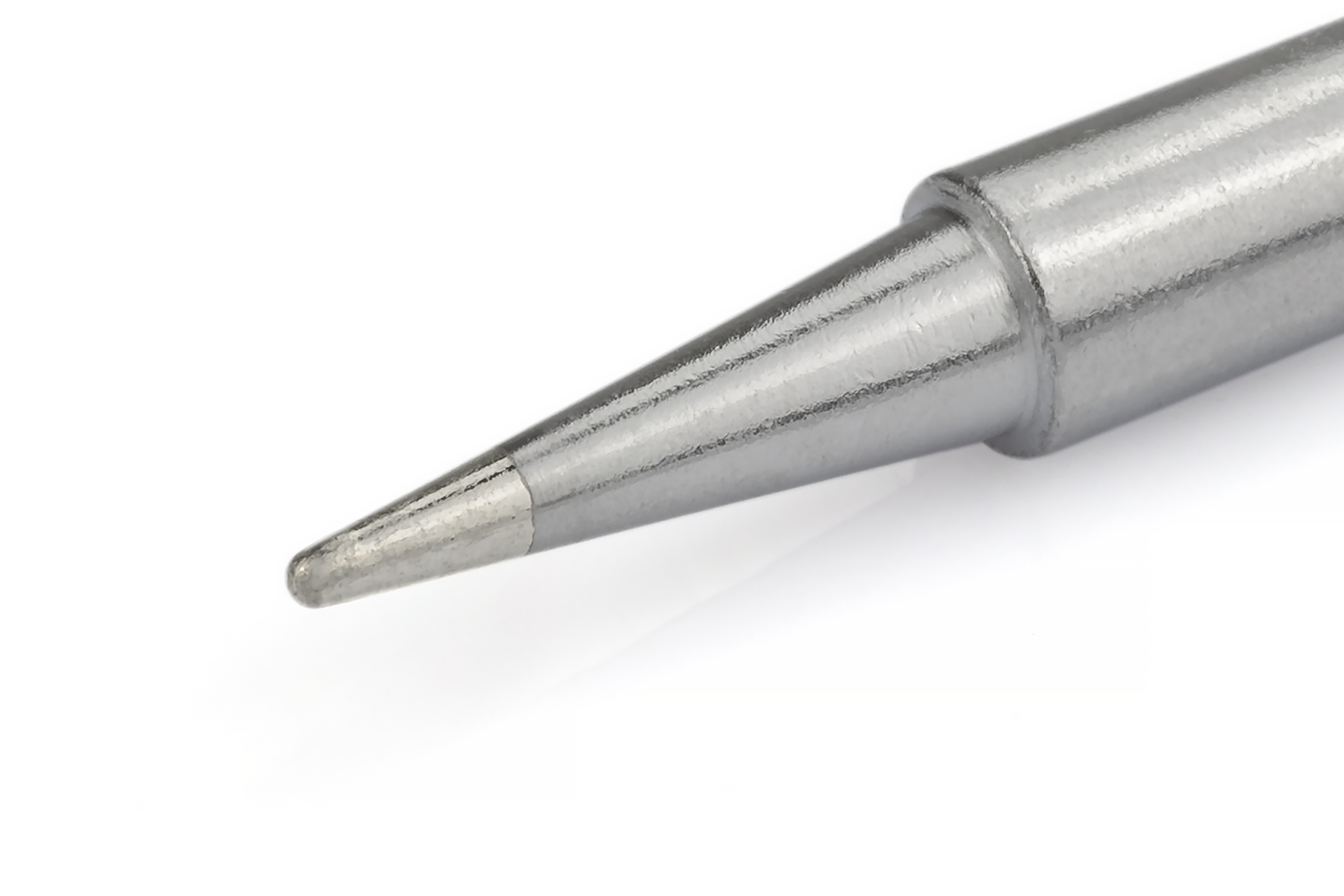

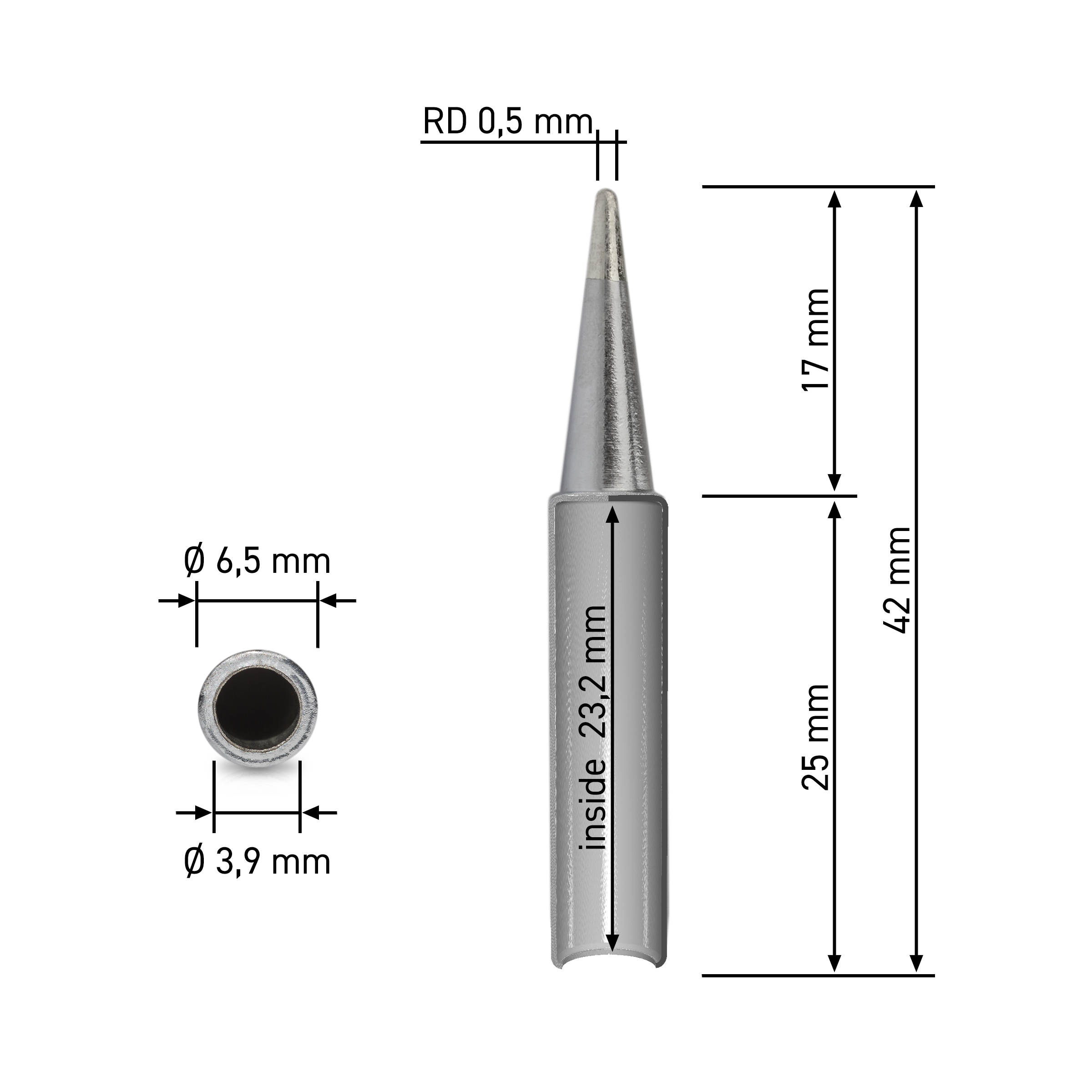

GO960-B (straight, pencil tip, Ø 0.5 mm)

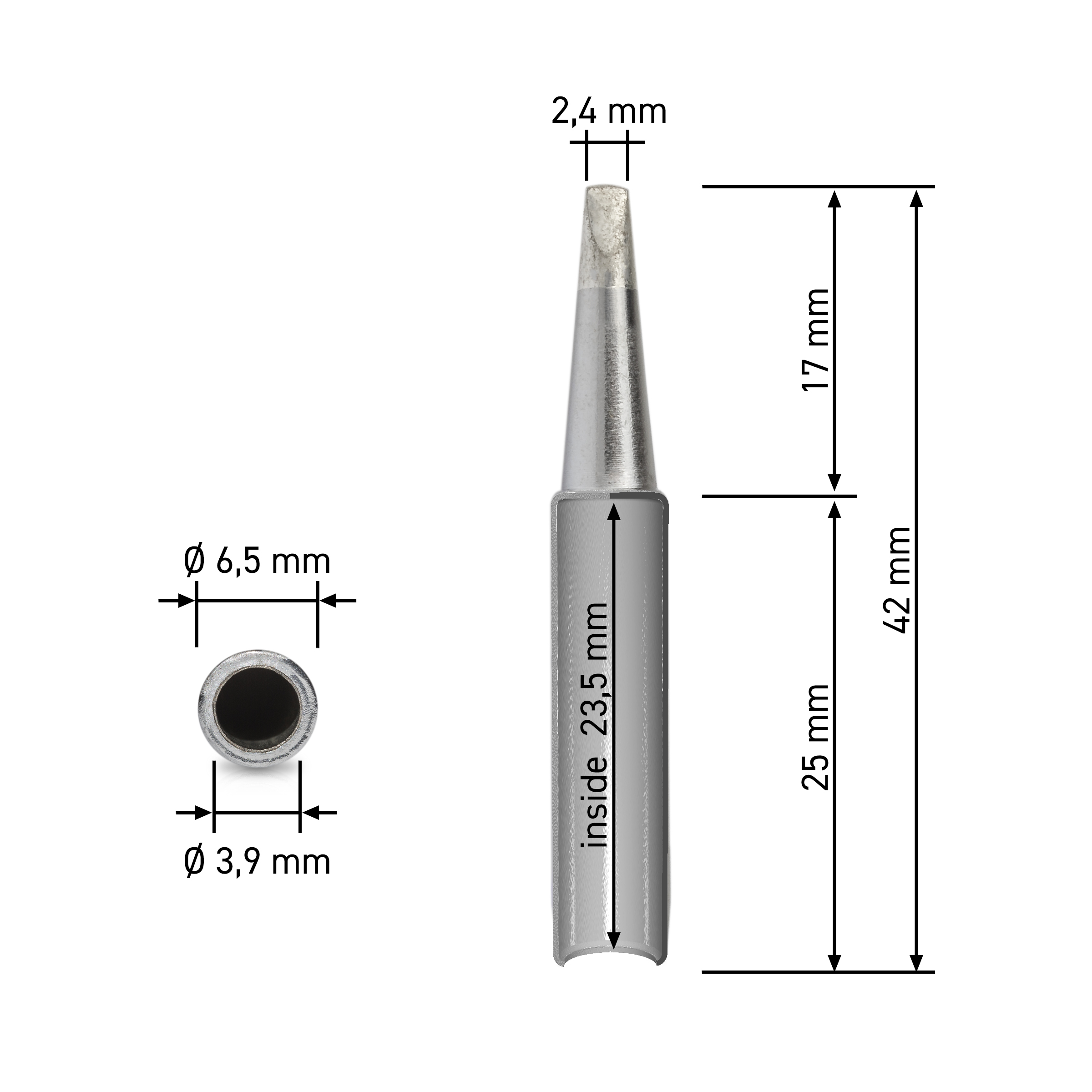

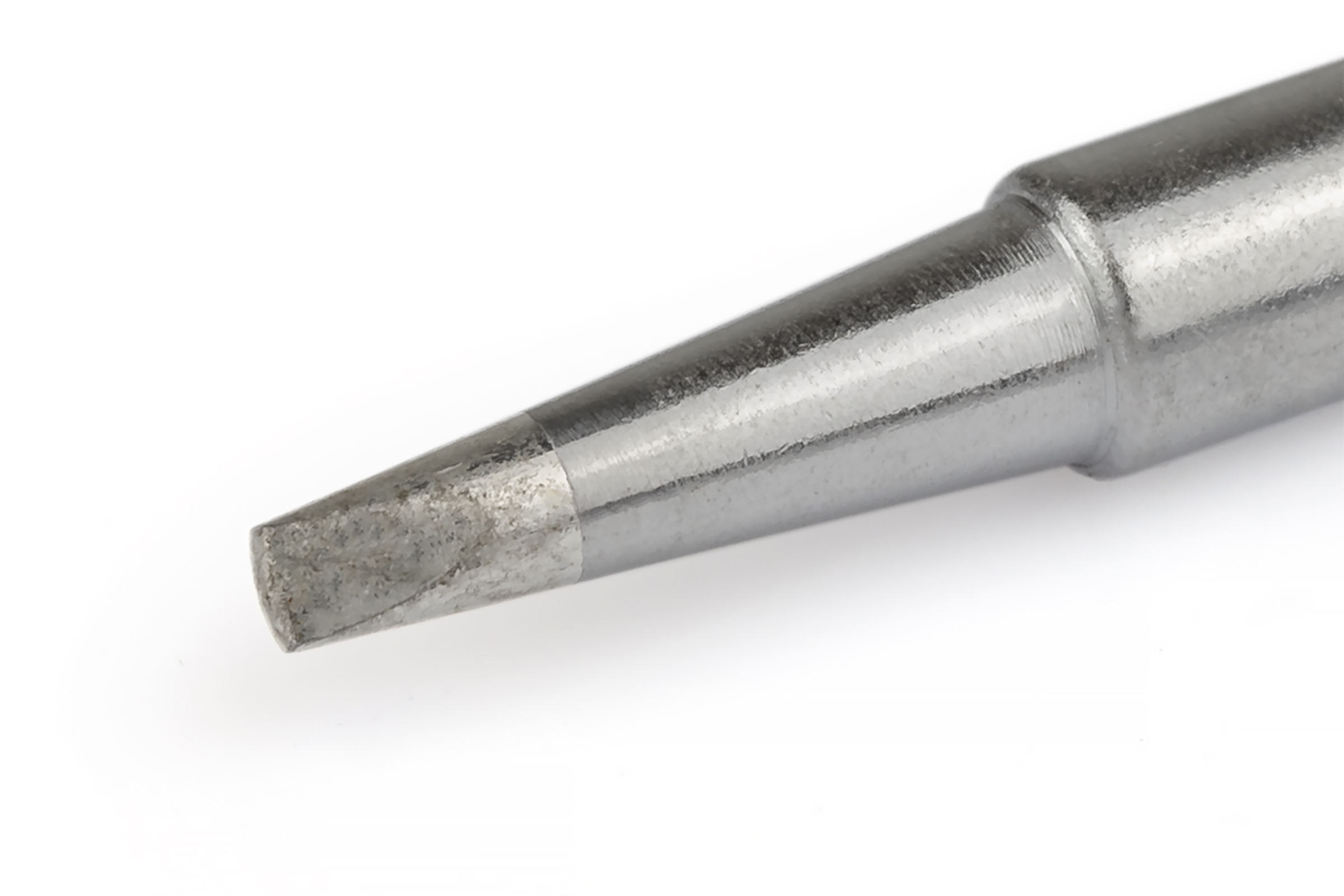

GO960-2.4D (straight, chisel-shaped, 2.4 mm wide)

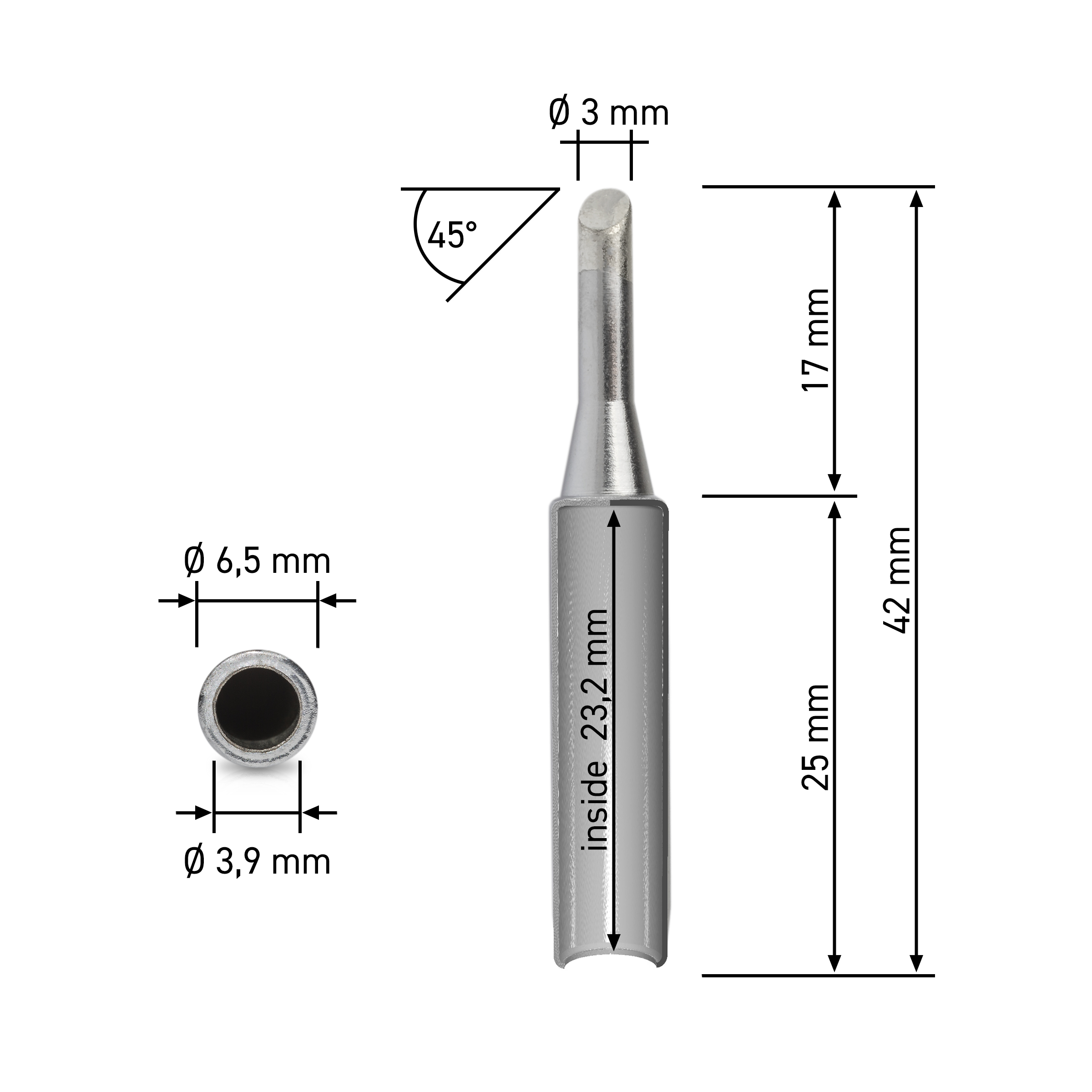

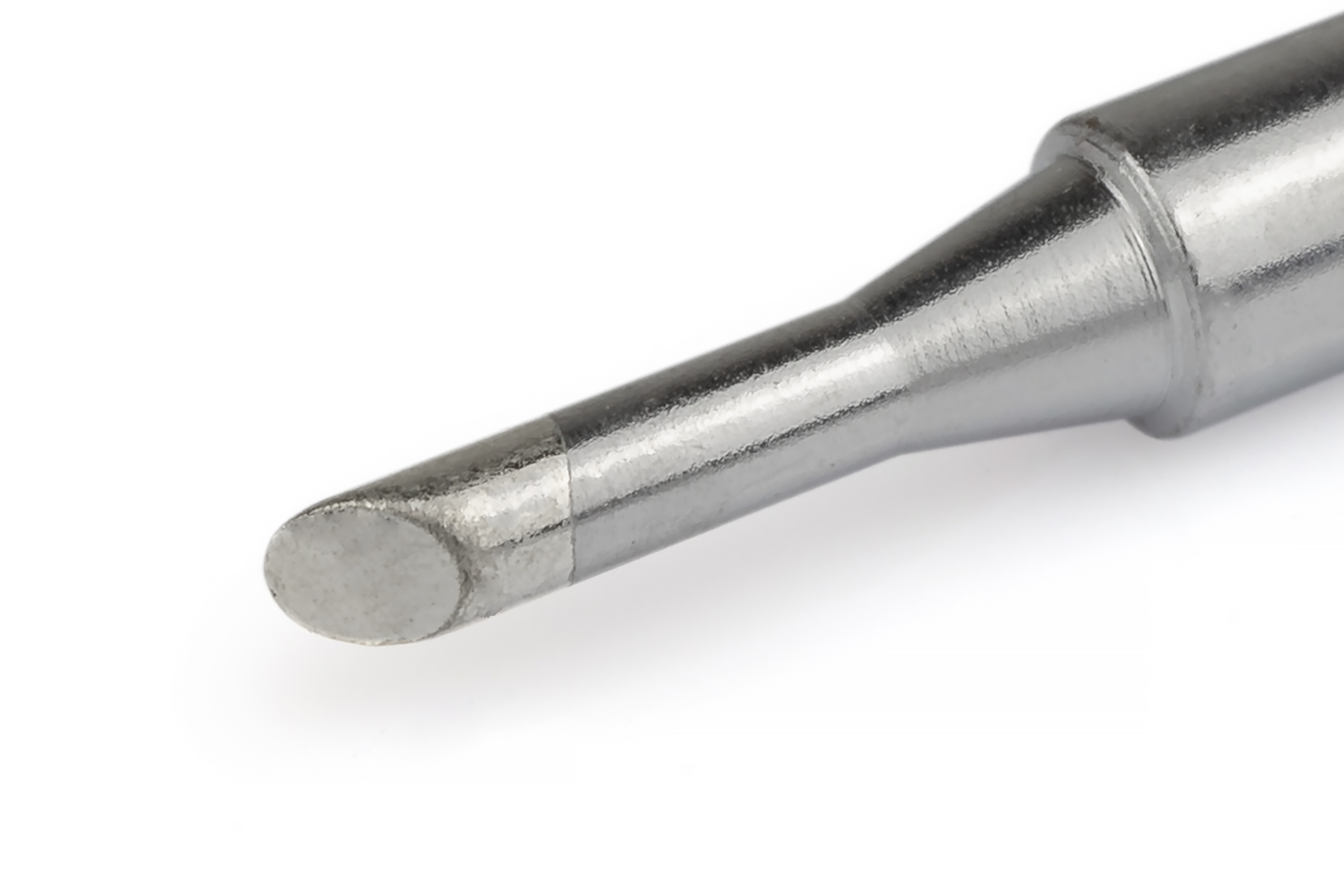

GO960-3C (straight, slanted 45°, Ø 3 mm)
GALLUNOPTIMAL Permanent Soldering Tip Set for GALLUNOPTIMAL SPRINT65
| Dimensions | 85 × 80 mm |
|---|---|
| ROHS compliance | Yes |
| Spitzendurchmesser/breite | |
| complete length | 42 mm |
| inner diameter shank | 3.90 mm |
| model | straight |
| outer diameter shaft | 6.50 mm |
| soldering-tip diameter / width | 0.50 mm |
| soldering-tip form | pencil point |
| surface soldering-tip | Permanent soldering tip |
| tip series | GO960 |
