Bernstein ESD SMD Tweezers Set, 6 pcs
– Contents: See below for list of items
– Material: stainless steel SA
– Surface: matt polished, smooth and glare-free
– ESD coating conductive between 10^6 and 10^9 ohms
– Dimensions: 130 x 140 x 20 mm
– Weight 155 g
Area of application
Tweezers for SMD/THT technology, for gripping components such as mini MELFs, diodes, resistors, or for the precise handling of delicate wires.
Technical product description
100% stainless steel, non-magnetic, rustproof, and acid-resistant, non-reflective, finely polished matte finish. Stainless steel, non-rusting austenitic chrome-nickel quality steel with low carbon content for good corrosion resistance (not seawater resistant).
Case made of ESD synthetic leather, EPA suitable for electrostatically protected areas (ESD workplace/ESD protection zone complies with DIN EN 61340-5-1 standard), conductive 10^6 ohms. The synthetic leather is flame-retardant, biocompatible and contains a conductive Velcro strip to prevent static charging when opening.
ESD SMD tweezers set consisting of:
– 5-060-0-ESD conductive case with 6 empty compartments

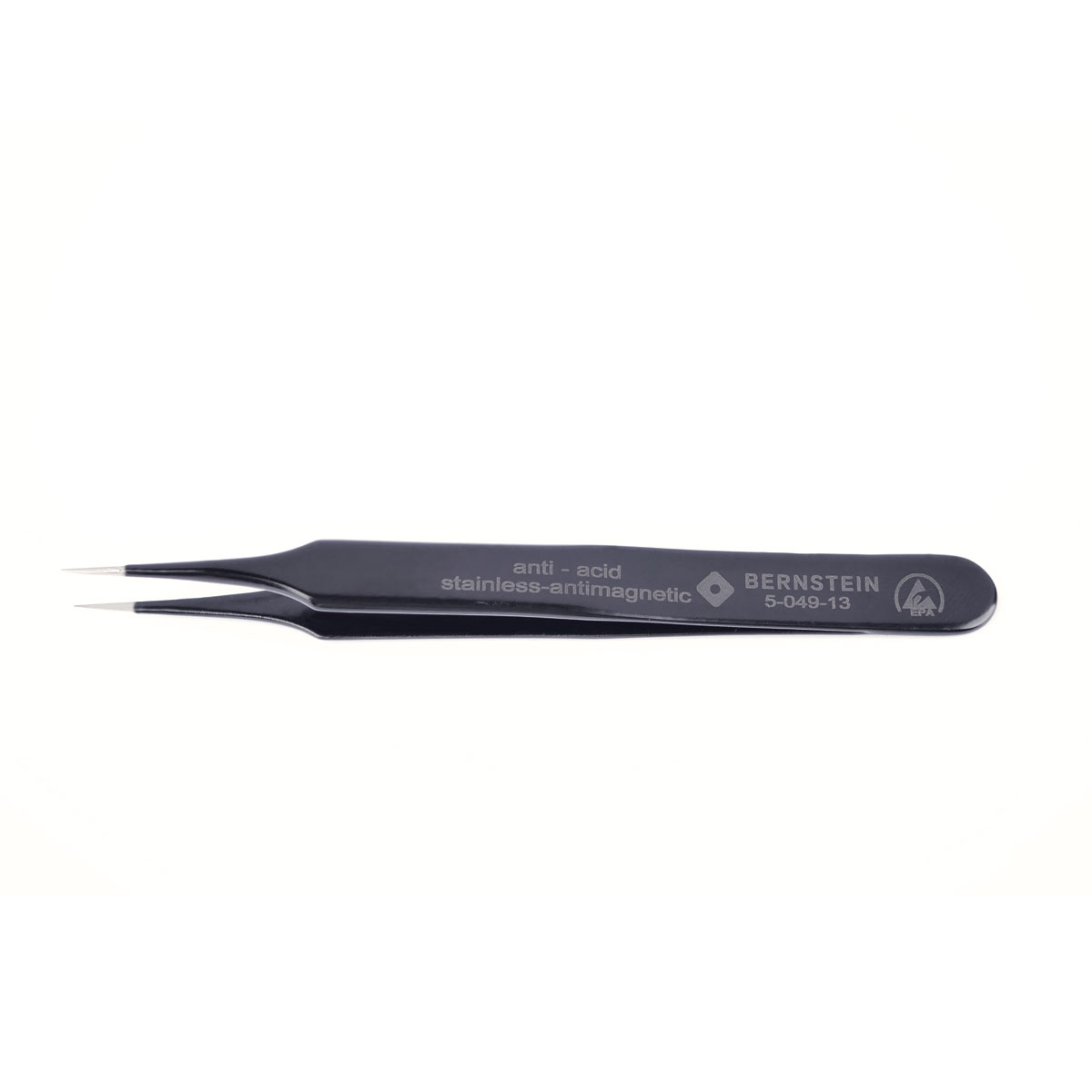

– 5-049-13 ESD SMD tweezers 110 mm, shape 4, stainless steel, conductive

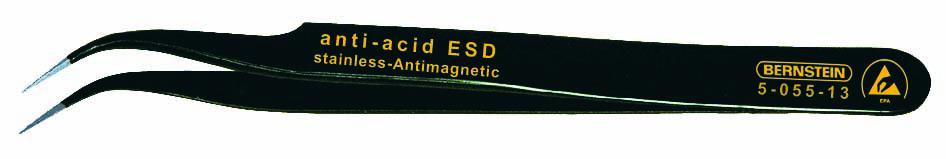

– 5-055-13 ESD SMD tweezers 120 mm, shape 7a, stainless steel, 40° angle, conductive

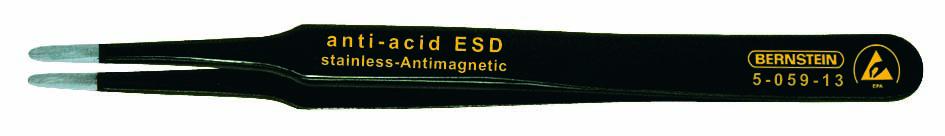

– 5-059-13 ESD SMD tweezers 120 mm, shape 2a, stainless steel, conductive

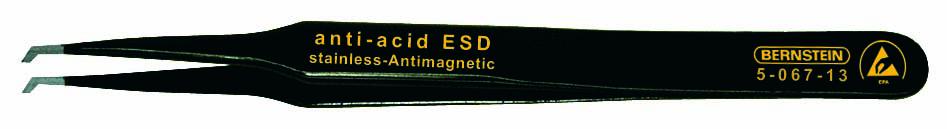

– 5-067-13 ESD SMD tweezers 120 mm, shape 12, stainless steel, 45° angle, conductive

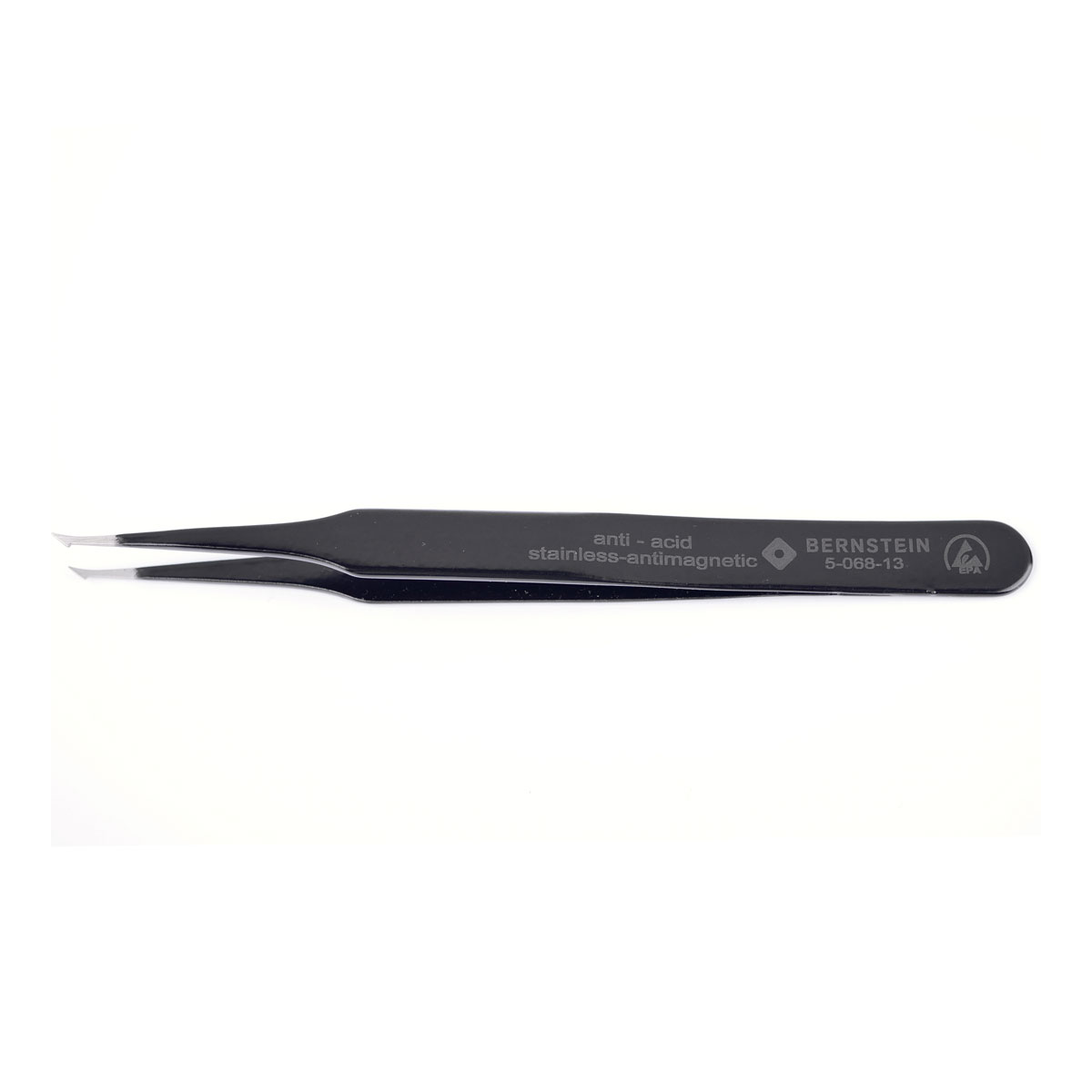

– 5-068-13 ESD Tweezers 120 mm, shape 13, stainless steel, angle 45°, conductive

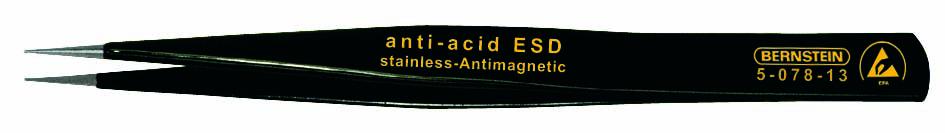

– 5-078-13 ESD SMD universal tweezers 130 mm, shape PSF, stainless steel, conductive
