Hot-Dip Galvanised Steel Mast Offset Bracket – 250 mm Offset, Ø 48 mm Antenna Tube, for Support Pipes Ø 38–60 mm
The AS38025 is a steel mast offset bracket designed to mount a suitable satellite dish on an existing horizontal or vertical support pipe.
According to the available product data, the bracket provides an offset of 250 mm.
The antenna mounting tube measures Ø 48 mm with a 2.0 mm wall thickness.
The bracket is attached to an existing pipe using two serrated clamps and two U-bolts and is intended for support pipes between Ø 38 and 60 mm.
According to the available product data, the AS38025 is suitable for satellite dishes up to Ø 90 cm.
For horizontal or vertical pipes
The bracket can be attached to suitable:
vertical round pipes
horizontal round pipes
with outside diameters between:
Ø 38 mm
Ø 60 mm
Two serrated clamps and two U-bolts
The fixing system consists of:
2 serrated clamps
2 U-bolts
The serrated surfaces support grip and help resist unwanted rotation.
Actual holding performance depends on:
pipe diameter
pipe material
surface condition
wall thickness
tightening force
antenna load
wind exposure
The installation should therefore not be considered absolutely rotation-proof under all conditions.

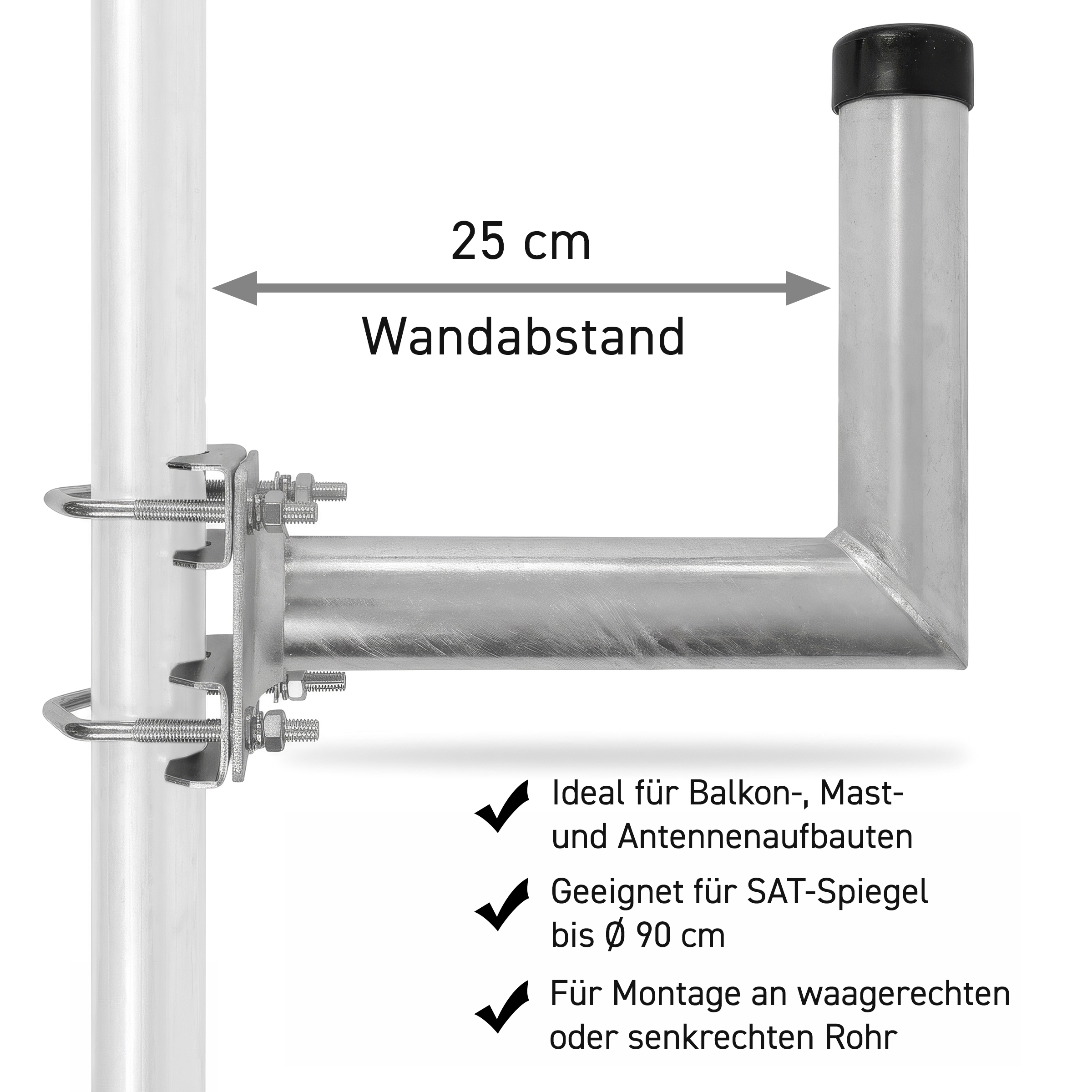

250 mm offset
The bracket provides a side offset of:
250 mm / 25 cm
This can be useful where additional clearance is required between the existing mast and the antenna.
Ø 48 × 2.0 mm antenna tube
The antenna mounting tube measures:
Ø 48 mm
2.0 mm wall thickness
The satellite dish clamp must be compatible with Ø 48 mm tubing.

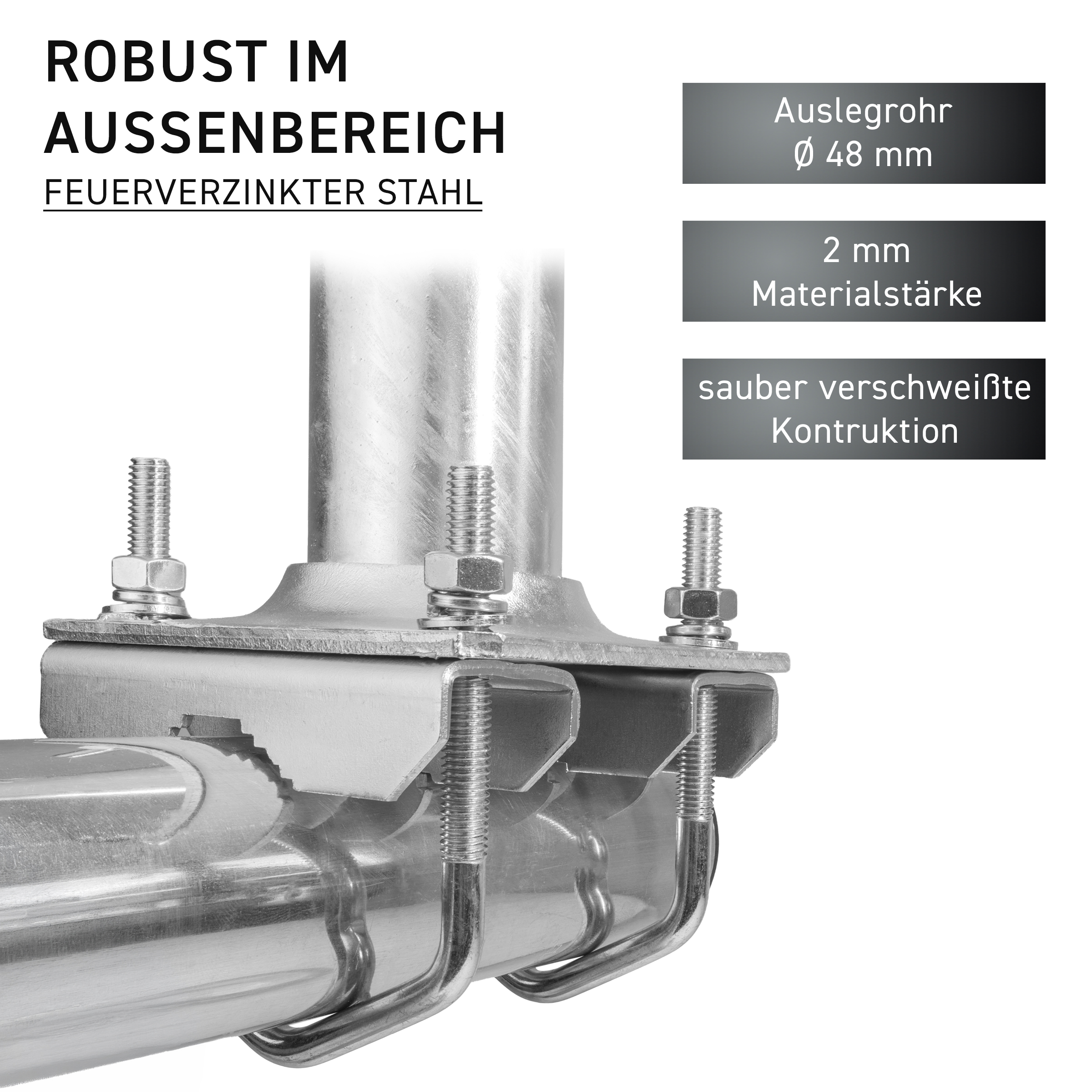

Hot-dip galvanised steel
The bracket is manufactured from hot-dip galvanised steel and is intended for suitable outdoor installations.
Suitable for satellite dishes up to Ø 90 cm
According to the product data, the AS38025 is suitable for satellite dishes up to 90 cm in diameter.
This does not constitute universal structural approval for every support mast or railing.
Support structure must be suitable
The existing pipe must be mechanically capable of carrying the additional:
bending loads
torsional loads
wind loads
created by the offset bracket and antenna.
Balcony installations
When attached to a balcony railing or pipe, the structural suitability of the railing must be checked.
A railing is not automatically suitable as an antenna support.

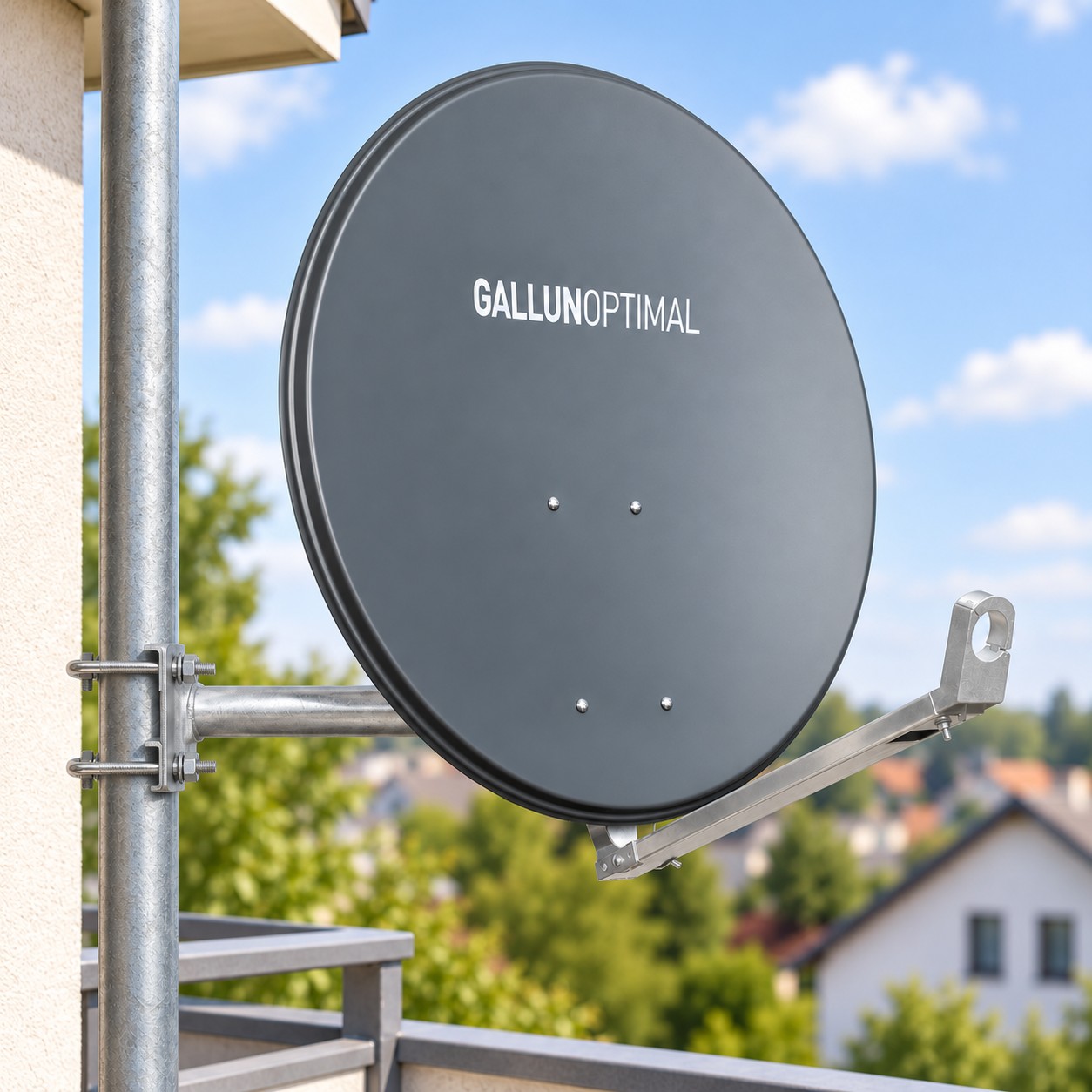

Typical applications
The AS38025 can be used for:
adding a satellite dish to an existing mast
side-offset antenna installation
extending an existing antenna system
replacing an existing mast offset bracket
mounting suitable antennas to round-pipe structures

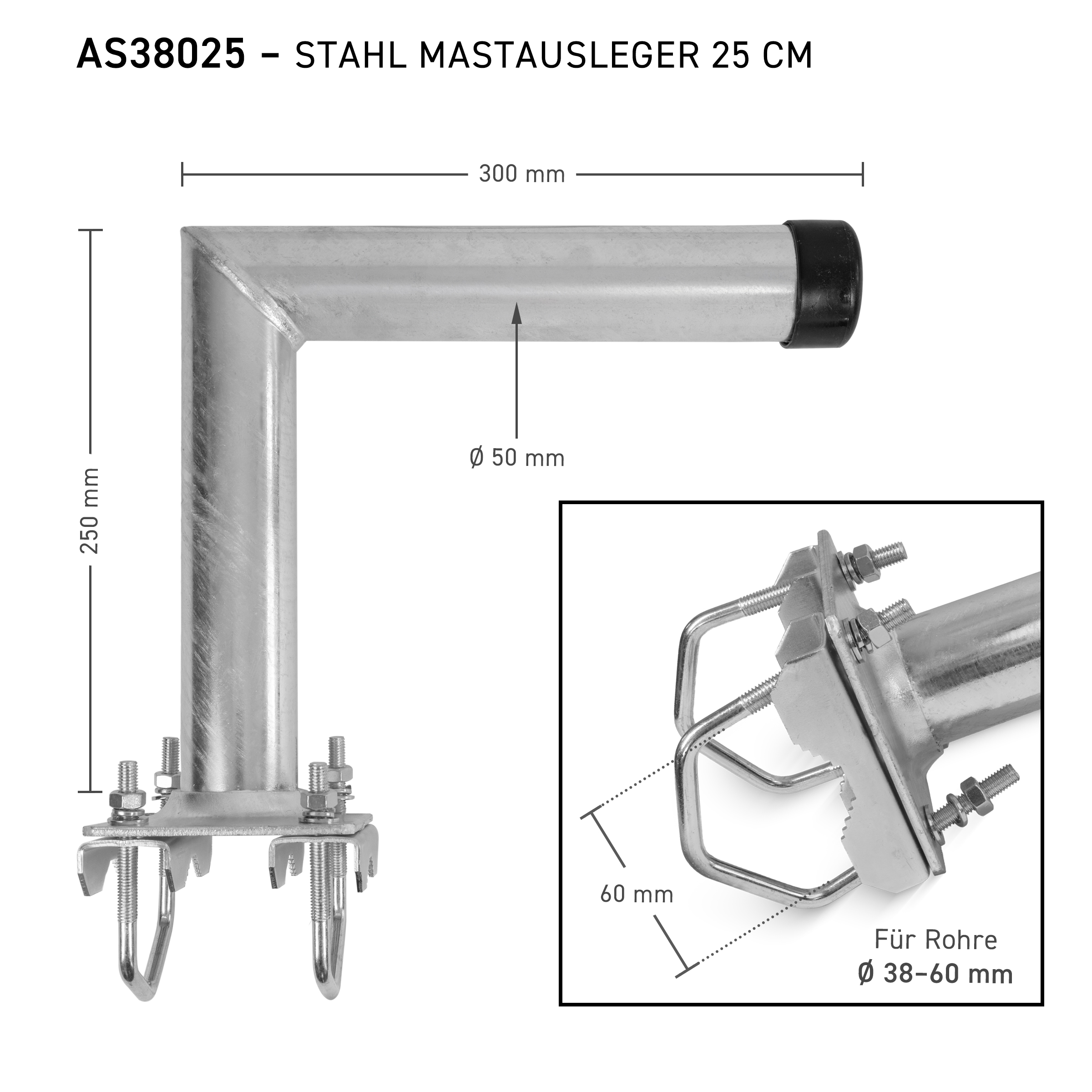

Technical specifications
Article reference: AS38025
Article number: 38025
EAN: 4050822380251
Product type: Steel mast offset bracket
Material: Steel
Surface: Hot-dip galvanised
Offset: 250 mm
Antenna tube: Ø 48 × 2.0 mm
Support pipe range: Ø 38–60 mm
Fixing: 2 serrated clamps + 2 U-bolts
Suitable satellite dish size: Up to Ø 90 cm according to product data
Package contents
1 × AS38025 steel mast offset bracket
2 × serrated clamps
2 × U-bolts
Mounting hardware according to product configuration
Satellite dish, LNB, support mast, receiver, coaxial cable and additional installation accessories are not included.
