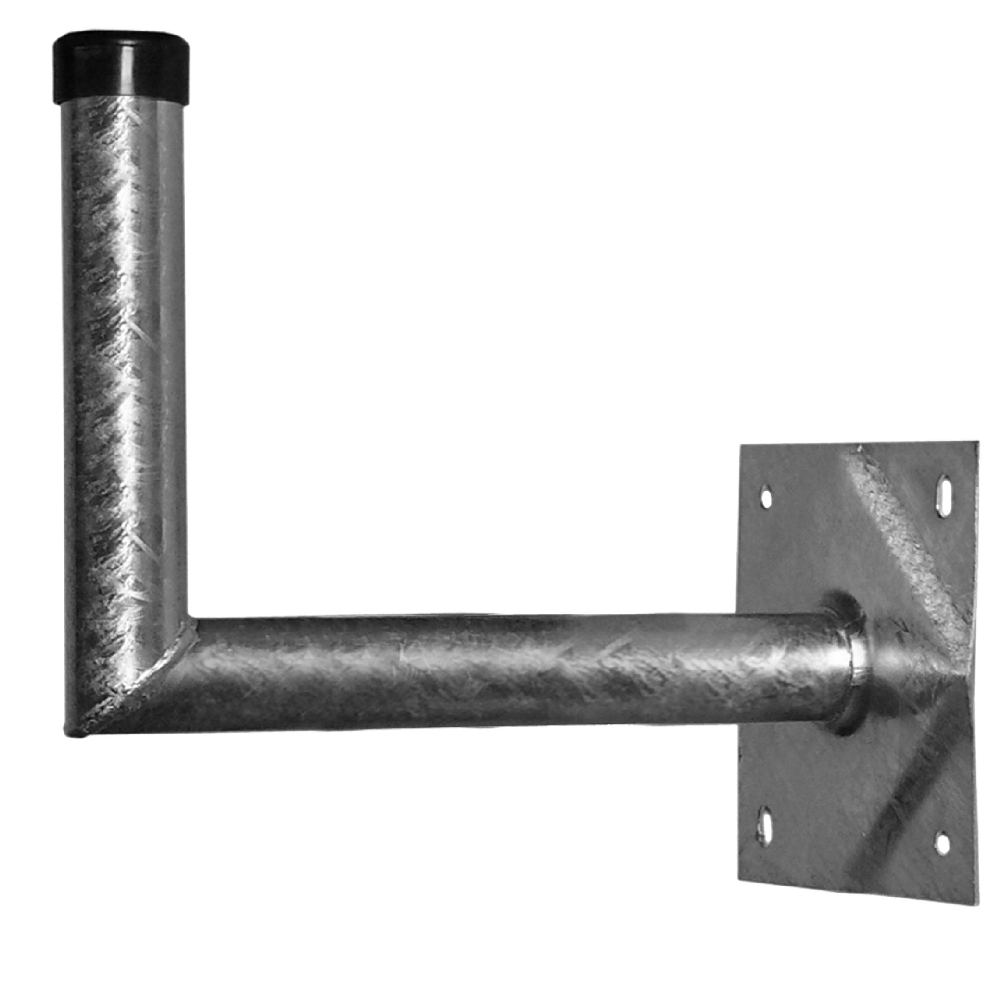

Very sturdy, hot-dip galvanized steel wall bracket for permanent
mounting of satellite dishes up to 100 cm in diameter.
Technical data:
– Material: high-quality steel
– Surface: Hot-dip galvanized, EN ISO 1461
– Wall distance: 500 mm
– Height: 280 mm
– Holder tube: Ø 48 mm x 2.0 mm
– Wall plate: 200 mm x 200 mm x 3.0 mm
– Wall plate with slotted holes for precise alignment, as well as
pressed bead and reinforcement collar for even greater stability
– Suitable for satellite antennas up to Ø 100 cm
Quality features:
Since 1992, A.S.SAT has specialized in the manufacture of high-quality mounting components and systems for satellite reception systems.
For outdoor use, A.S.SAT mainly uses hot-dip galvanized steel, as this is more resistant to weather conditions than electro-galvanized steel.
