QUICK hot air rework station digital 1000W, 1 – 50 L/min., +100 to +500°C, calibration function, automatic standby and idle mode, constant output temperature, auto-cooling system, 3 fixed memory slots with 4-piece accessory set
The QUICK 862DW is a digital hot air soldering station designed for professional users.
All materials used are of high quality and well processed.

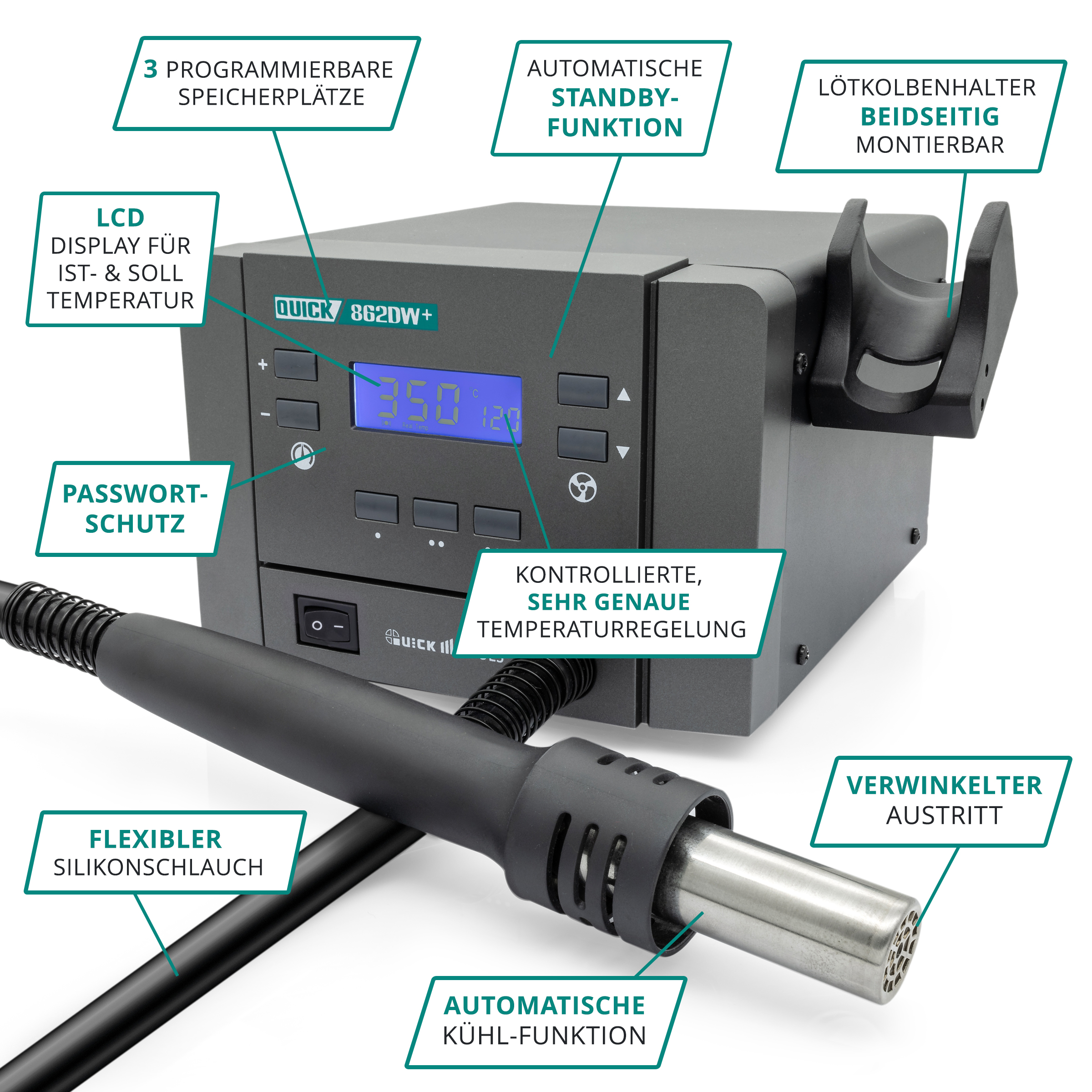

For example, a brushless and low-wear motor is used. The entire hot air soldering station is designed for a long service life. Accuracy is also an important point. The control circuit used for temperature control enables temperature stability to be maintained to within +/- 2 °C. The air volume can be regulated in 1 liter increments, with a range of 1 – 60 l/min. Other highlights include an auto standby & hibernation function, which is controlled by a magnetic switch in the hot air piston. As soon as the piston is placed in the stand, the magnetic switch detects this and activates an automatic cooling function. If less than 100°C is reached, the station switches off the airflow.

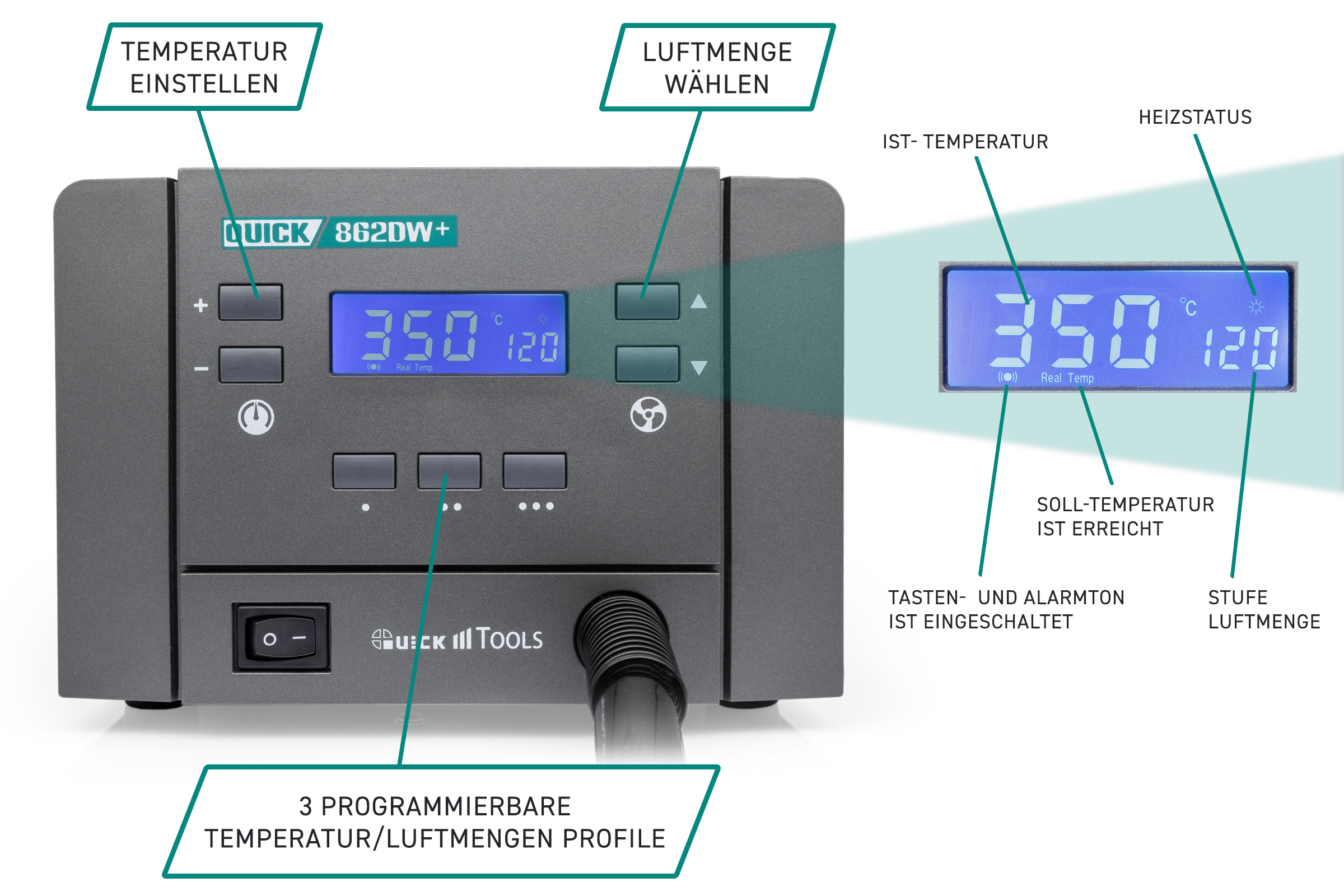

There are 3 programmable memory slots available to quickly access your most frequent settings. Password protection, a calibration function and ESD protection are also included.
Technical data:
– Display: LCD
– Power input: 1000 W
– Operating voltage: 230 V / 50 Hz
– Temperature range: 100-500 °C
– Temperature stability: +/- 2 °C
– Max. ambient temperature: 40 °C
– Hot air setting range: 1 – 60 l/min. (in 120 increments)
– Standby: 0-999 s

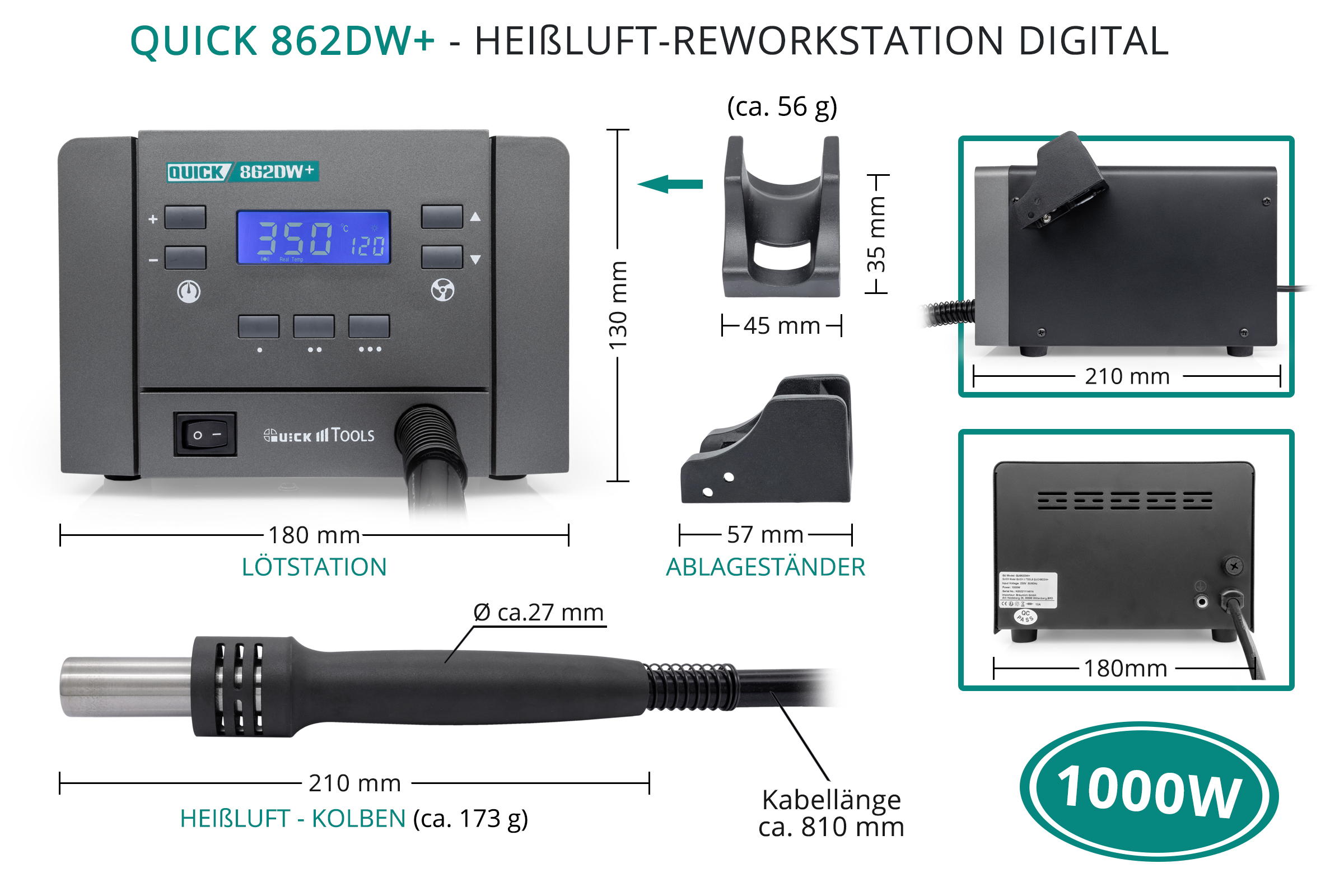

– Dimensions: W-H-D 245x135x188 mm
– Weight: 3.95 kg
– Conformity: RoHS, CE

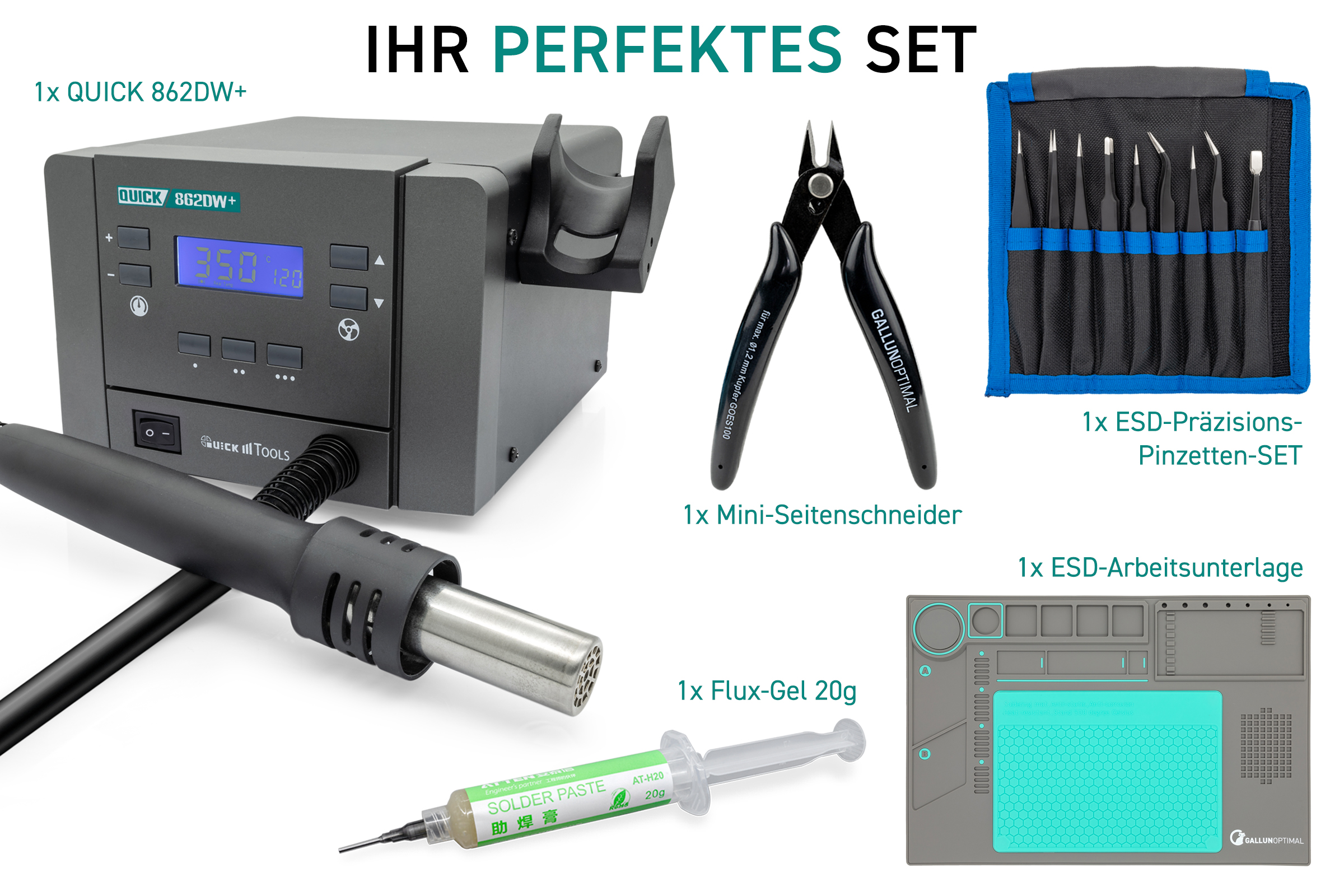

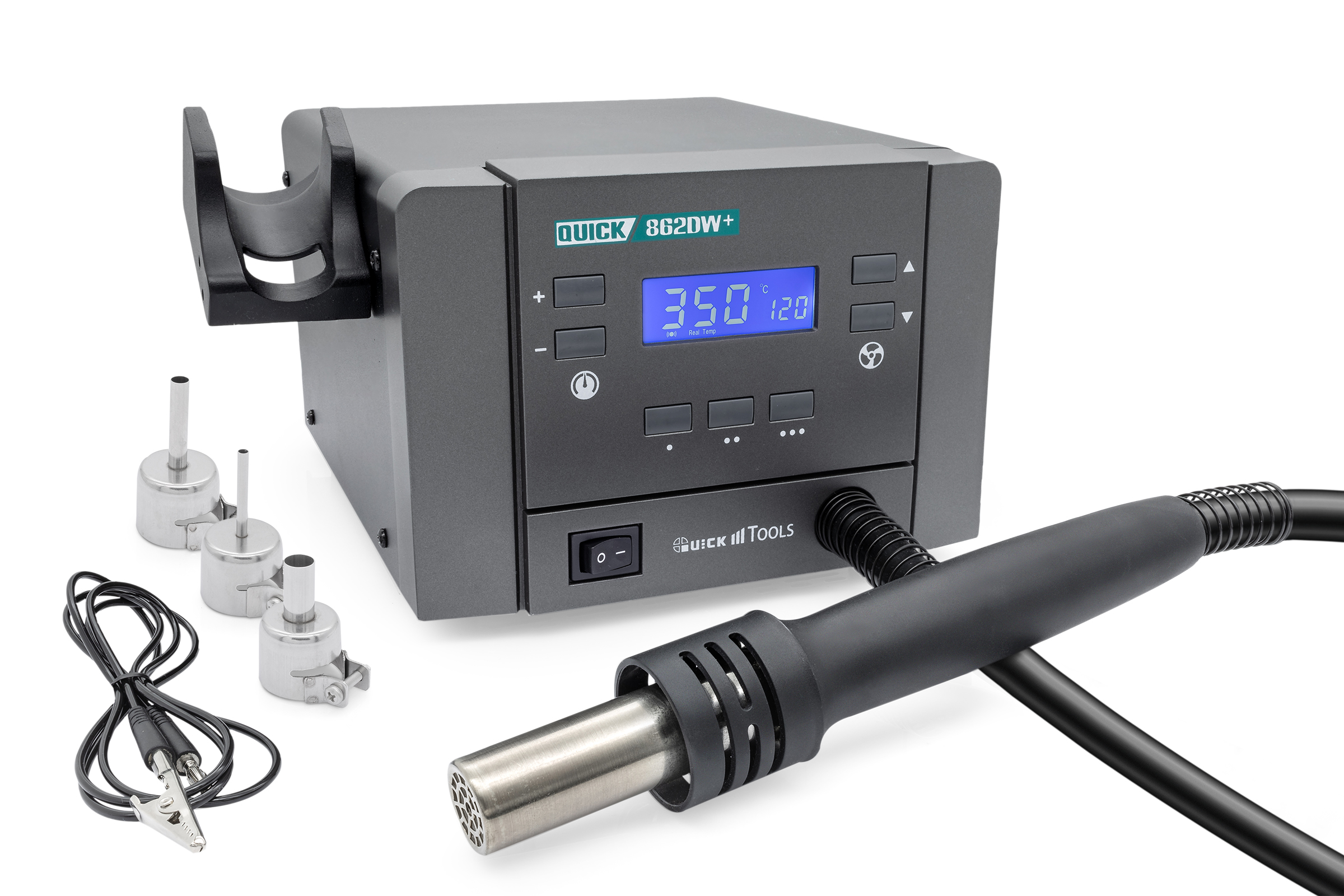

Contents:

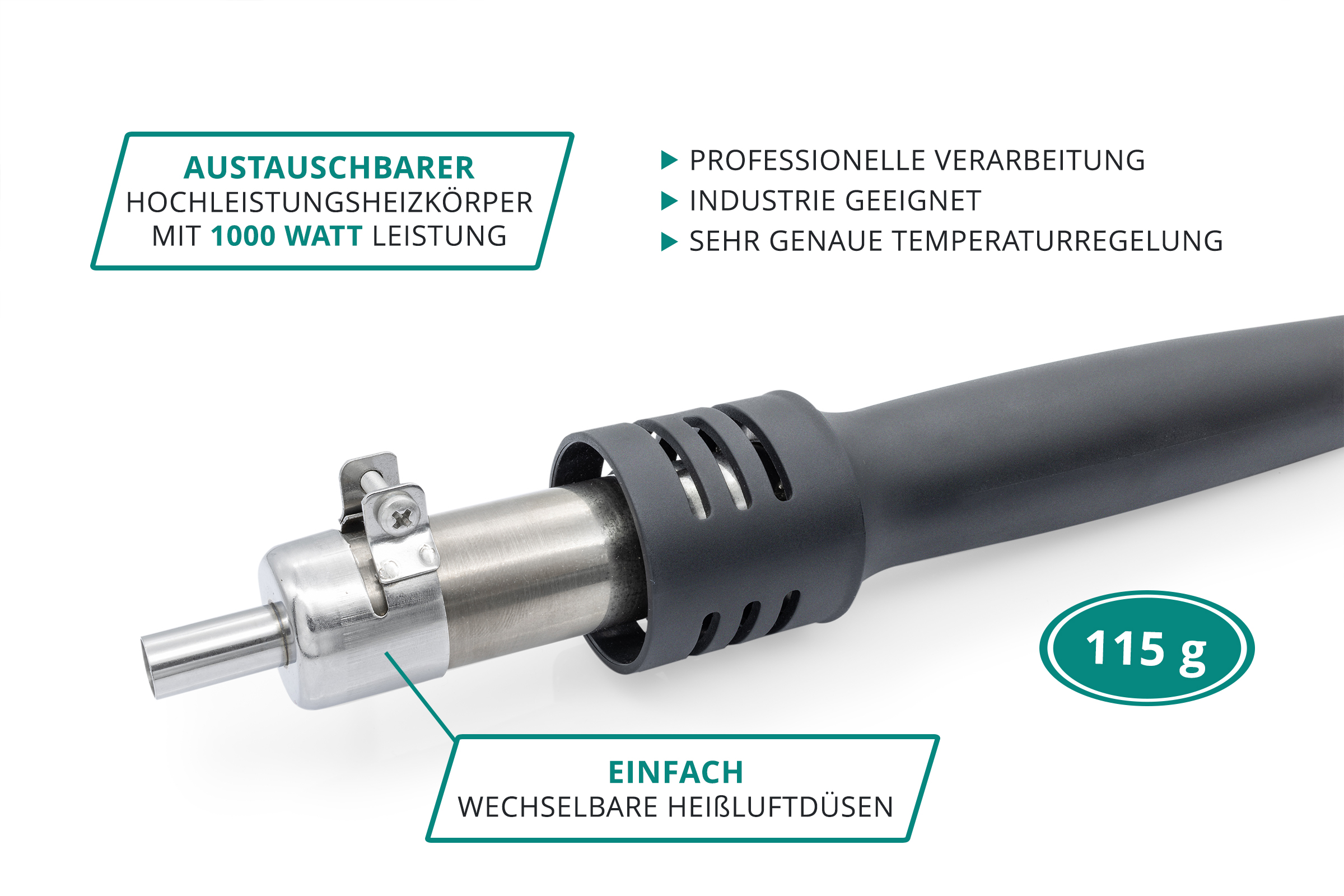

– 862DW+ rework soldering station incl. ELKTR3 1000 watt hot air pencil
– ASTR3 storage stand
– Potential equalization cable with optional alligator clip

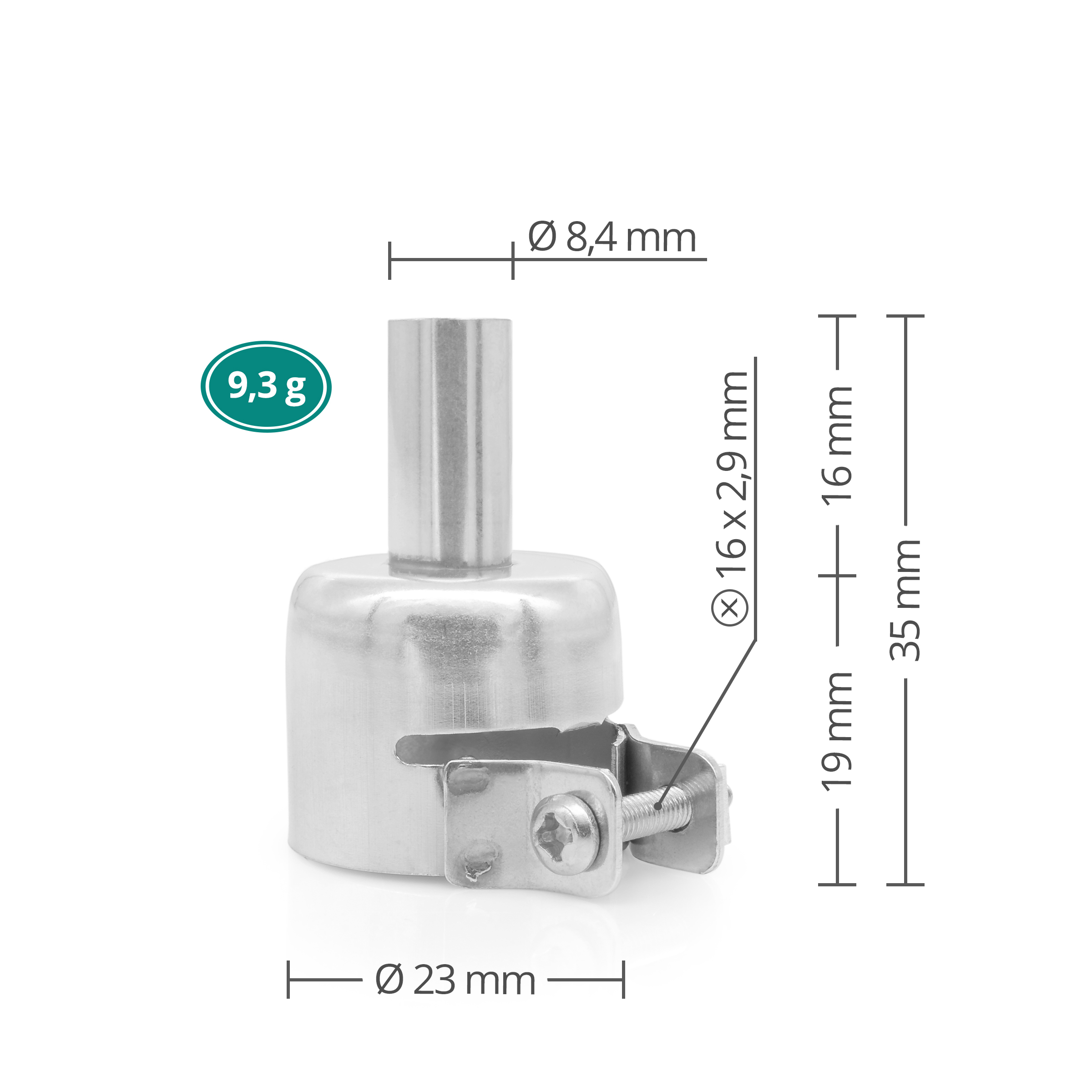

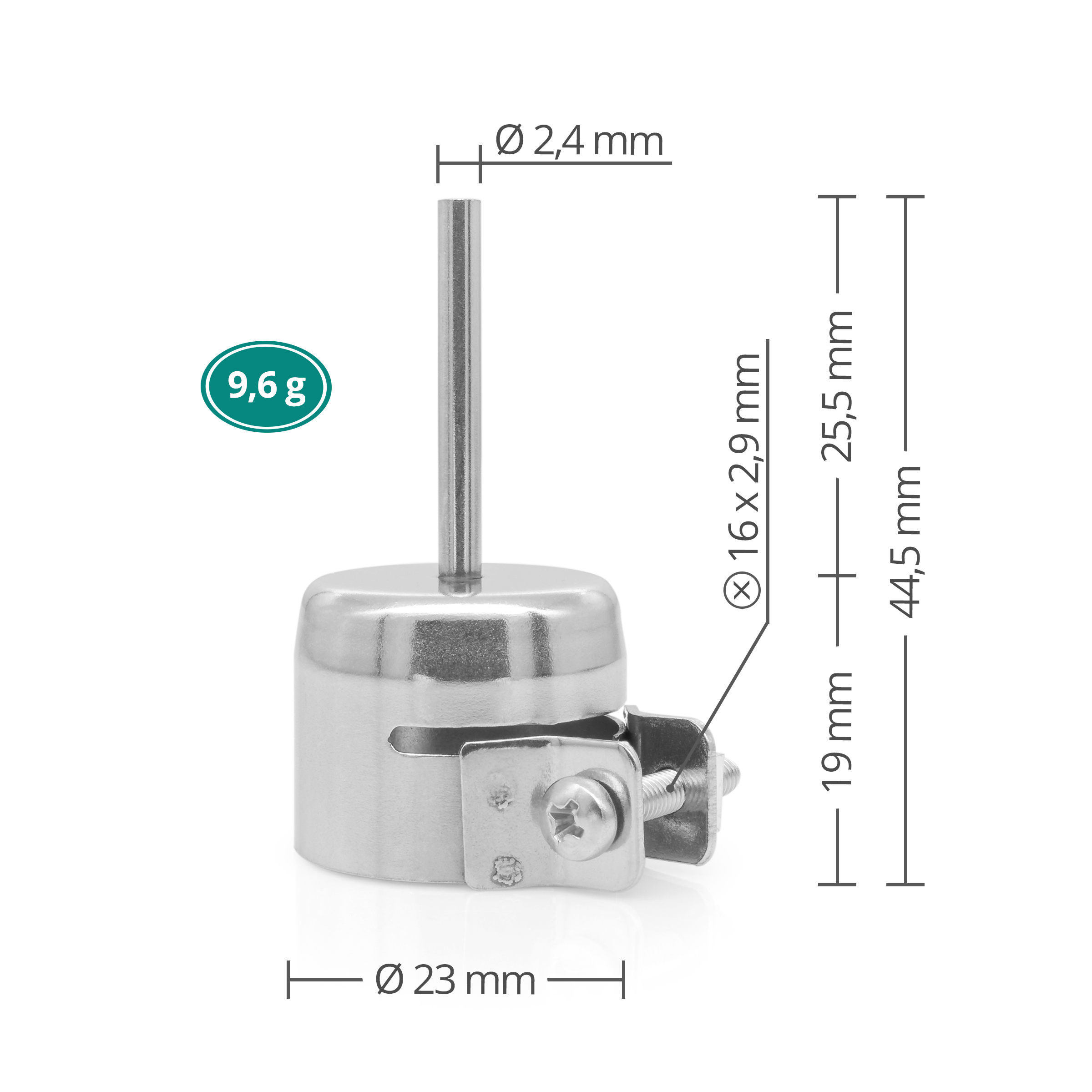

– 3 hot air nozzles A1124 (2.4 mm), A1130 (5 mm), A1300 (8.4 mm)
– Accessory set consisting of ESD work mat, ESD precision tweezers SET, mini side cutter and flux gel 20g
