ERSA desoldering ERSADUR set

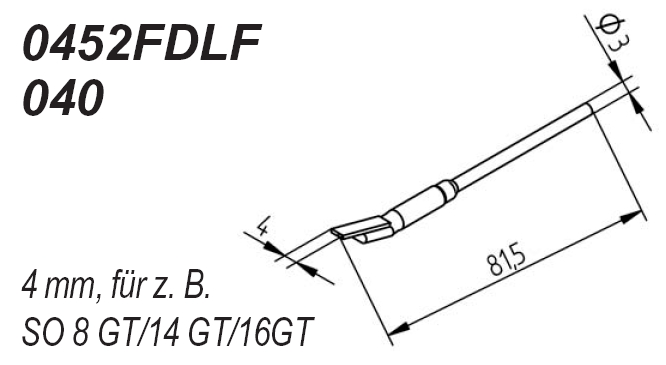

Desoldering set straight edge length of 4.0 mm, with ERSADUR LF-coating for the component SO 8 GT/ 14 GT / 16 GT.
Compatible stations are i-CON i-CON2 and DIGITAL 2000 A, each with Entlötpincette 40 (0430EDJ) or the chip-tool (0450MDJ), SMT UNIT 60 A / AS MICRO-CON 60 iA, DIGITAL 2000 A, each with Entlötpincette 40 (0430EDJ) or the chip-tool (0450MDJ) and 80 and SMD Rework 8000, each with tweezers TC40 (0420EDJ).
ERSA ERSADUR Entlötspitzen-Satz gerade, 4,0 mm
| Dimensions | 100 × 60 × 4 mm |
|---|---|
| model | straight |
| outer diameter shaft | 3.00 mm |
| surface soldering-tip | Permanent soldering tip |
| complete length | 82 mm |
| soldering-tip diameter / width | 4.00 mm |
| ROHS compliance | Yes |
| tip series | 452 |
